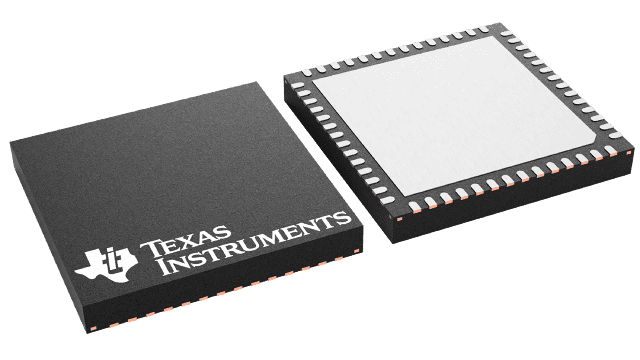

CC2538SF53RTQT


YeeHing #: Y016-CC2538SF53RTQT
Inventory: 7200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CC2538SF53RTQT Texas Instruments - Yeehing Electronics

32-bit Arm Cortex-M3 Zigbee, 6LoWPAN, and IEEE 802.15.4 wireless MCU with 512kB Flash and 32kB RAM

Pricing (USD)

Quantity Unit Price
1 — 99 8.645
100 — 249 7.552
250 — 999 5.823
1,000 + 3.65

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category RF System on a Chip - SoC
RoHS Y
Type Zigbee
Core ARM Cortex M3
Operating Frequency 2.4 GHz
Maximum Data Rate 250 kb/s
Output Power 7 dBm
Sensitivity - 97 dBm
Operating Supply Voltage 2 V to 3.6 V
Supply Current Receiving 20 mA
Supply Current Transmitting 24 mA
Program Memory Size 512 kB
Operating Temperature Range - 40 C to + 125 C
Package / Case QFN-56
Packaging Reel
Program Memory Type Flash
Series CC2538
Brand Texas Instruments
Data RAM Size 32 kB
Data RAM Type RAM
Interface Type I2C, SPI, UART, USB
Mounting Style SMD/SMT
ADC Resolution 12 bit
Data Bus Width 32 bit
Development Kit CC2538DK
Maximum Operating Temperature + 125 C
Minimum Operating Temperature - 40 C
Moisture Sensitive Yes
Number of ADC Channels 8
Number of Timers 5 Timer
Processor Series CC2538
Product Type RF System on a Chip - SoC
Factory Pack Quantity 250
Subcategory Wireless & RF Integrated Circuits
Unit Weight 0.031747 oz

For more information, please refer to datasheet

Documents

CC2538SF53RTQT Datasheet

More Information

The CC2538xFnn is the ideal wireless microcontroller System-on-Chip (SoC) for high-performance ZigBee applications. The device combines a powerful ARM Cortex-M3-based MCU system with up to 32KB on-chip RAM and up to 512KB on-chip flash with a robust IEEE 802.15.4 radio. This enables the device to handle complex network stacks with security, demanding applications, and over-the-air download. Thirty-two GPIOs and serial peripherals enable simple connections to the rest of the board. The powerful hardware security accelerators enable quick and efficient authentication and encryption while leaving the CPU free to handle application tasks. The multiple low-power modes with retention enable quick startup from sleep and minimum energy spent to perform periodic tasks. For a smooth development, the CC2538xFnn includes a powerful debugging system and a comprehensive driver library. To reduce the application flash footprint, CC2538xFnn ROM includes a utility function library and a serial boot loader. Combined with the robust and comprehensive Z-Stack software solutions from TI, the CC2538 provides the most capable and proven ZigBee solution in the market.
