Texas Instruments

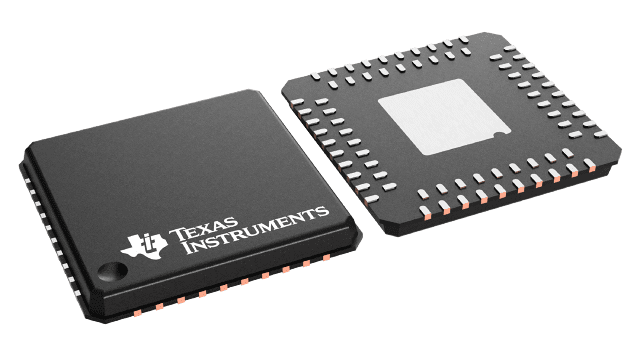

CC2560BRVMR
CC2560BRVMR
Regular price
$1.26 USD
Regular price
Sale price
$1.26 USD
Unit price
per
Couldn't load pickup availability
CC2560BRVMR Texas Instruments - Yeehing Electronics
Bluetooth® 4.1 with Basic Rate (BR), Enhanced Data Rate (EDR), Low Energy (LE)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.644 |
| 100 — 249 | 3.193 |
| 250 — 999 | 2.239 |
| 1,000 + | 1.26 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Transceiver |
| RoHS | Y |
| Type | Bluetooth |
| Frequency Range | 2.402 GHz to 2.48 GHz |
| Maximum Data Rate | 3000 kb/s |
| Modulation Format | BR, EDR |
| Supply Voltage - Min | 2.2 V |
| Supply Voltage - Max | 4.8 V |
| Supply Current Receiving | 35 mA |
| Supply Current Transmitting | 82.5 mA |
| Output Power | 12 dBm |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Interface Type | I2S |
| Package / Case | VQFNP-76 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Sensitivity | - 95 dBm |
| Series | CC2560 |
| Technology | Bluetooth |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Development Kit | MSP-WDS430BT1000AD |
| Maximum Operating Frequency | 2.48 GHz |
| Moisture Sensitive | Yes |
| Number of Receivers | 1 Receiver |
| Number of Transmitters | 1 Transmitter |
| Product Type | RF Transceiver |
| Factory Pack Quantity | 2500 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.005644 oz |
For more information, please refer to datasheet
Documents
| CC2560BRVMR Datasheet |
More Information
The TI CC256x device is a complete Bluetooth BR/EDR/LE HCI solution that reduces design effort and enables fast time to market. Based on TIs seventh-generation Bluetooth core, the CC256x device provides a product-proven solution that is Bluetooth 4.1 compliant. When coupled with a microcontroller unit (MCU), this HCI device offers best-in-class RF performance with a range of about 2X compared to other Bluetooth LE-only solutions. Furthermore, TIs power-management hardware and software algorithms provide significant power savings in all commonly used Bluetooth BR/EDR/LE modes of operation.
