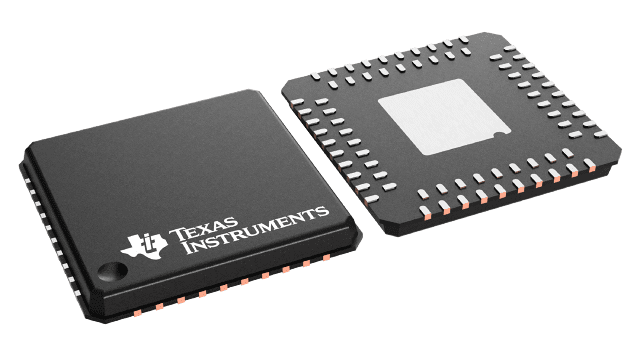

CC2564BRVMR Texas Instruments - Yeehing Electronics

Bluetooth® 4.0 with Enhanced Data Rate (EDR), Low Energy (LE) and ANT

Pricing (USD)

Quantity	Unit Price
1 — 99	3.798
100 — 249	3.328
250 — 999	2.333
1,000 +	5.49

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RF Transceiver
RoHS	Y
Type	Bluetooth
Frequency Range	2.402 GHz to 2.48 GHz
Maximum Data Rate	4 Mb/s
Modulation Format	EDR, GFSK, GMSK
Supply Voltage - Min	2.2 V
Supply Voltage - Max	4.8 V
Supply Current Receiving	41.2 mA
Supply Current Transmitting	41.2 mA
Output Power	12 dBm
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Interface Type	UART
Package / Case	VQFNP-76
Packaging	Reel
Operating Temperature Range	- 40 C to + 85 C
Sensitivity	- 95 dBm
Series	CC2564
Technology	Dual-mode Bluetooth
Brand	Texas Instruments
Mounting Style	SMD/SMT
Development Kit	MSP-WDS430BT2000D
Moisture Sensitive	Yes
Number of Receivers	1 Receiver
Number of Transmitters	1 Transmitter
Product Type	RF Transceiver
Factory Pack Quantity	2500
Subcategory	Wireless & RF Integrated Circuits
Unit Weight	0.005644 oz

For more information, please refer to datasheet

Documents

CC2564BRVMR Datasheet

More Information

The TI CC256x device is a complete Bluetooth BR/EDR/LE HCI solution that reduces design effort and enables fast time to market. Based on TI’s seventh-generation Bluetooth core, the CC256x device provides a product-proven solution that is Bluetooth 4.1 compliant. When coupled with a microcontroller unit (MCU), this HCI device offers best-in-class RF performance with a range of about 2X compared to other Bluetooth LE-only solutions. Furthermore, TI’s power-management hardware and software algorithms provide significant power savings in all commonly used Bluetooth BR/EDR/LE modes of operation.
