Description

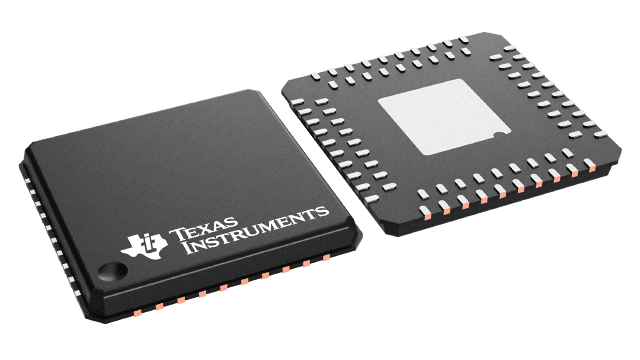

CC2564CRVMR Texas Instruments - Yeehing Electronics
Bluetooth® 5.1 with Basic Rate (BR), Enhanced Data Rate (EDR), Low Energy (LE)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.212 |
| 100 — 249 | 2.814 |
| 250 — 999 | 1.973 |
| 1,000 + | 0.96 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Transceiver |
| RoHS | Y |
| Type | Bluetooth |
| Frequency Range | 2.402 GHz to 2.48 GHz |
| Maximum Data Rate | 4 Mb/s |
| Modulation Format | 8DPSK, DQPSK, GFSK |
| Supply Voltage - Min | 1.7 V |
| Supply Voltage - Max | 4.8 V |
| Supply Current Transmitting | 112.5 mA |
| Output Power | 12 dBm |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Interface Type | UART |
| Package / Case | VQFN-76 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Sensitivity | - 96 dBm |
| Series | CC2564C |
| Technology | Dual-mode Bluetooth |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Development Kit | CC256XCQFN-EM |
| Moisture Sensitive | Yes |
| Number of Receivers | 1 Receiver |
| Number of Transmitters | 1 Transmitter |
| Product Type | RF Transceiver |
| Factory Pack Quantity | 2500 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.005644 oz |
For more information, please refer to datasheet
Documents
| CC2564CRVMR Datasheet |
More Information
The CC2564C device from Texas Instruments™ is a complete Bluetooth® BR/EDR, and low energy HCI level solution, providing high performance and robust Bluetooth solution. Based on TI’s seventh-generation Bluetooth core, the CC2564C device provides a product-proven solution that is Bluetooth 5.1-compliant, adding LE security and enhancing support for complex topologies (dual mode and link layer topologies). This HCI device offers best-in-class RF performance with about twice the throughput of other Bluetooth low-energy solutions, and includes a royalty-free software stack compatible with several host MCUs and MPUs, for a complete Bluetooth solution. Furthermore, TI’s power-management hardware and software algorithms provide significant power savings in all commonly used Bluetooth BR, EDR, and low energy modes of operation.
