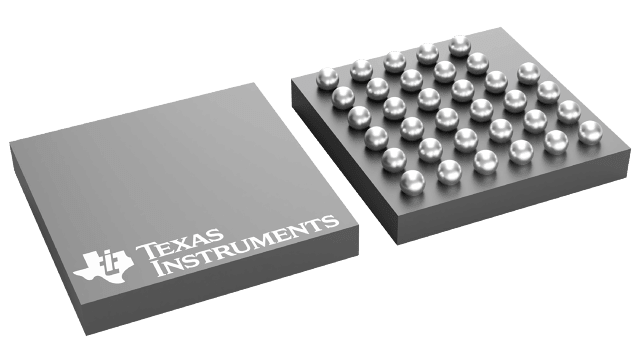

CC2640R2FYFVT


YeeHing #: Y016-CC2640R2FYFVT
Inventory: 3800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CC2640R2FYFVT Texas Instruments - Yeehing Electronics

SimpleLink™ 32-bit Arm® Cortex®-M3 Bluetooth® 5.1 Low Energy wireless MCU with 128-kB flash

Pricing (USD)

Quantity Unit Price
1 — 99 4.033
100 — 249 3.288
250 — 999 2.584
1,000 + 1.53

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category RF Microcontrollers - MCU
RoHS Y
Core ARM Cortex M3
Operating Frequency 2.4 GHz
Data Bus Width 32 bit
Program Memory Size 128 kB
Data RAM Size 20 kB
Maximum Clock Frequency 48 MHz
ADC Resolution 12 bit
Operating Supply Voltage 1.8 V to 3.8 V
Maximum Operating Temperature + 85 C
Package / Case DSBGA-34
Mounting Style SMD/SMT
Packaging Reel
Program Memory Type Flash
Series CC2640R2F
Brand Texas Instruments
Data RAM Type SRAM
Interface Type I2C, I2S, SSI, UART
Number of I/Os 14 I/O
Minimum Operating Temperature - 40 C
Number of ADC Channels 8 Channel
Number of Timers 4 x 32 bit
Processor Series CC26xx
Product Type RF Microcontrollers - MCU
Factory Pack Quantity 250
Subcategory Wireless & RF Integrated Circuits
Supply Voltage - Max 3.8 V
Supply Voltage - Min 1.8 V
Tradename SimpleLink
Unit Weight 0.000275 oz

For more information, please refer to datasheet

Documents

CC2640R2FYFVT Datasheet

More Information

The CC2640R2F device is a 2.4 GHz wireless microcontroller (MCU) supporting Bluetooth ® 5.1 Low Energy and Proprietary 2.4 GHz applications. The device is optimized for low-power wireless communication and advanced sensing in building security systems, HVAC, asset tracking, and medical markets, and applications where industrial performance is required. The highlighted features of this device include:
