Description

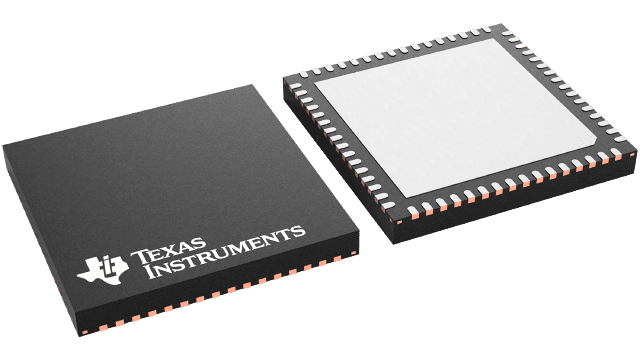

CC3100R11MRGCR Texas Instruments - Yeehing Electronics
SimpleLink™ 32-bit Arm Cortex-M3 Wi-Fi® wireless network processor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.244 |
| 100 — 249 | 4.581 |
| 250 — 999 | 3.532 |
| 1,000 + | 2.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF System on a Chip - SoC |
| RoHS | Y |
| Type | Wi-Fi |
| Core | ARM |
| Operating Frequency | 2.4 GHz |
| Maximum Data Rate | 16 Mb/s |
| Output Power | 18 dBm |
| Sensitivity | - 95.7 dBm |
| Operating Supply Voltage | 2.1 V to 3.6 V |
| Supply Current Receiving | 53 mA |
| Supply Current Transmitting | 223 mA |
| Program Memory Size | - |
| Operating Temperature Range | - 40 C to + 85 C |
| Package / Case | VQFN-64 |
| Packaging | Reel |
| Height | 1 mm |
| Length | 9.15 mm |
| Series | CC3100 |
| Width | 9.15 mm |
| Brand | Texas Instruments |
| Data RAM Size | - |
| Interface Type | SPI, UART |
| Mounting Style | SMD/SMT |
| Maximum Clock Frequency | 40 MHz |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Processor Series | CC3100 |
| Product Type | RF System on a Chip - SoC |
| Factory Pack Quantity | 2500 |
| Subcategory | Wireless & RF Integrated Circuits |
| Tradename | SimpleLink |
| Unit Weight | 0.008854 oz |
For more information, please refer to datasheet
Documents
| CC3100R11MRGCR Datasheet |
More Information
Connect any low-cost, low-power microcontroller (MCU) to the Internet of Things (IoT). The CC3100 device is the industrys first Wi-Fi CERTIFIED chip used in the wireless networking solution. The CC3100 device is part of the new SimpleLink Wi-Fi family that dramatically simplifies the implementation of Internet connectivity. The CC3100 device integrates all protocols for Wi-Fi and Internet, which greatly minimizes host MCU software requirements. With built-in security protocols, the CC3100 solution provides a robust and simple security experience. Additionally, the CC3100 device is a complete platform solution including various tools and software, sample applications, user and programming guides, reference designs and the TI E2E™ support community. The CC3100 device is available in an easy-to-layout QFN package.
