Texas Instruments

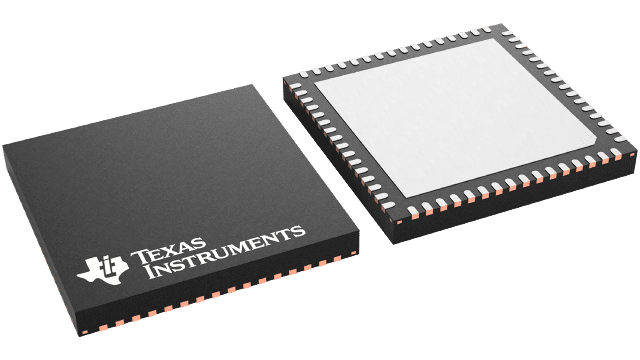

CC3200R1M2RGC
CC3200R1M2RGC
Couldn't load pickup availability
CC3200R1M2RGC Texas Instruments - Yeehing Electronics
SimpleLink™ 32-bit Arm Cortex-M4 Wi-Fi® wireless MCU with 2 TLS/SSL and 256kB RAM
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.589 |
| 100 — 249 | 7.502 |
| 250 — 999 | 5.785 |
| 1,000 + | 3.62 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF System on a Chip - SoC |
| RoHS | Y |
| Type | Wi-Fi |
| Core | ARM Cortex M4 |
| Operating Frequency | 2.4 GHz |
| Maximum Data Rate | 16 Mb/s |
| Output Power | 18 dBm |
| Sensitivity | - 96 dBm |
| Operating Supply Voltage | 2.1 V to 3.6 V |
| Supply Current Receiving | 59 mA |
| Supply Current Transmitting | 229 mA |
| Operating Temperature Range | - 40 C to + 85 C |
| Package / Case | VQFN-64 |
| Packaging | Reel |
| Height | 1 mm |
| Length | 9.15 mm |
| Series | CC3200 |
| Width | 9.15 mm |
| Brand | Texas Instruments |
| Data RAM Size | 256 kB |
| Data RAM Type | SRAM |
| Interface Type | I2C, I2S, SPI, UART |
| Mounting Style | SMD/SMT |
| Number of I/Os | 27 I/O |
| ADC Resolution | 12 bit |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 80 MHz |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 4 Channel |
| Number of Timers | 4 x 16 bit |
| Processor Series | CC3200 |
| Product Type | RF System on a Chip - SoC |
| Factory Pack Quantity | 2500 |
| Subcategory | Wireless & RF Integrated Circuits |
| Tradename | SimpleLink |
| Unit Weight | 0.008854 oz |
For more information, please refer to datasheet
Documents
| CC3200R1M2RGC Datasheet |
More Information
Start your design with the industry’s first Wi-Fi CERTIFIED single-chip microcontroller unit (MCU) with built-in Wi-Fi connectivity. Created for the Internet of Things (IoT), the SimpleLink CC3200 device is a wireless MCU that integrates a high-performance ARM Cortex-M4 MCU, allowing customers to develop an entire application with a single IC. With on-chip Wi-Fi, Internet, and robust security protocols, no prior Wi-Fi experience is required for faster development. The CC3200 device is a complete platform solution including software, sample applications, tools, user and programming guides, reference designs, and the TI E2E™ support community. The device is available in a QFN package that is easy to layout.
