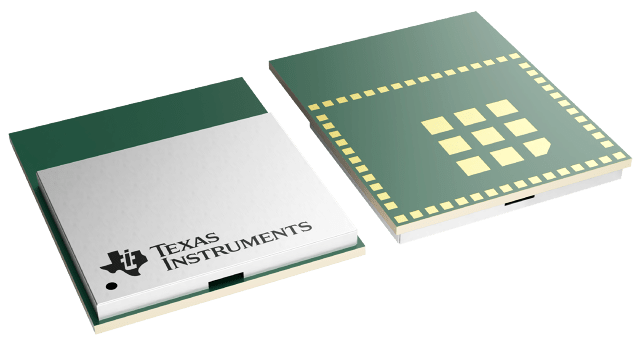

CC3220MODASM2MONR Texas Instruments - Yeehing Electronics

SimpleLink™ 32-bit Arm Cortex-M4 Wi-Fi CERTIFIED™ wireless module with antenna

Pricing (USD)

Quantity	Unit Price
1 — 99	9.047
100 — 249	7.903
250 — 999	6.093
1,000 +	4.36

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RF Microcontrollers - MCU
RoHS	N
Core	ARM Cortex M4
Operating Frequency	2.4 GHz
Data Bus Width	32 bit
Program Memory Size	-
Data RAM Size	256 kB
Maximum Clock Frequency	80 MHz
ADC Resolution	12 bit
Operating Supply Voltage	2.3 V to 3.6 V
Maximum Operating Temperature	+ 85 C
Package / Case	QFM-63
Mounting Style	SMD/SMT
Packaging	Reel
Program Memory Type	-
Series	CC3220MODA
Brand	Texas Instruments
Data RAM Type	RAM
Interface Type	I2C, I2S, SD, SPI, UART
Number of I/Os	25 I/O
Minimum Operating Temperature	- 40 C
Moisture Sensitive	Yes
Number of ADC Channels	4 Channel
Number of Timers	4 Timer
Processor Series	CC3220MODA
Product Type	RF Microcontrollers - MCU
Factory Pack Quantity	800
Subcategory	Wireless & RF Integrated Circuits
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.3 V
Tradename	SimpleLink

For more information, please refer to datasheet

Documents

CC3220MODASM2MONR Datasheet

More Information

Start your design with the fully programmable FCC, IC, CE, MIC, and SRRC Certified wireless microcontroller (MCU) module with built-in Wi-Fi connectivity. Created for the IoT, the SimpleLink™ CC3220MODx and CC3220MODAx module family from Texas Instruments™ is a wireless module that integrates two physically separated on-chip MCUs.
