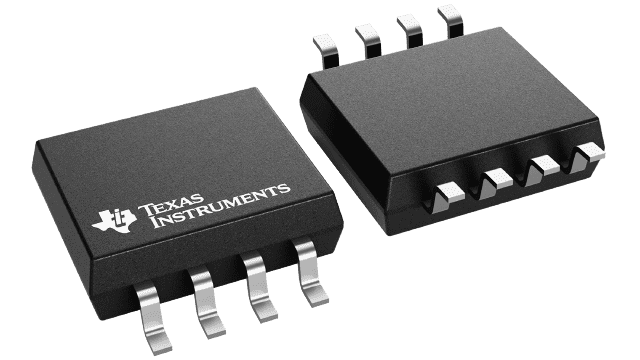

CD40107BPSR Texas Instruments - Yeehing Electronics

2-ch, 2-input, 3-V to 18-V NAND gates with open-drain outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.313
100 — 249	0.213
250 — 999	0.164
1,000 +	0.08

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Logic Gates
RoHS	Y
Product	Single-Function Gate
Logic Function	NAND
Logic Family	CD4000
Number of Gates	2 Gate
Number of Input Lines	2 Input
Number of Output Lines	1 Output
High Level Output Current	- 85 mA
Low Level Output Current	0 mA
Propagation Delay Time	200 ns
Supply Voltage - Max	18 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SO-8
Packaging	Reel
Function	NAND
Height	1.95 mm
Input Type	CMOS
Length	6.2 mm
Operating Temperature Range	- 55 C to + 125 C
Output Type	CMOS
Quiescent Current	40 nA
Series	CD40107B
Width	5.3 mm
Brand	Texas Instruments
Logic Type	CMOS Dual 2-Input NAND Buffer/Driver
Number of Bits	2 bit
Operating Supply Current	60 uA
Operating Supply Voltage	10 V
Product Type	Logic Gates
Factory Pack Quantity	2000
Subcategory	Logic ICs
Unit Weight	0.004325 oz

For more information, please refer to datasheet

Documents

CD40107BPSR Datasheet

More Information

The CD40107B is a dual 2-input NAND buffer/driver containing two independent 2-input NAND buffers with open-drain single n-channel transistor outputs. This device features a wired-OR capability and high output sink current capability (136 mA typ. at VDD = 10 V, VDS= 1 V). The CD40107B is supplied in 8-lead hermetic dual-in-line ceramic packages (F3A suffix), 8-lead dual-in-line plastic packages (E suffix), 8-lead small-outline packages (M, M96, MT, and PSR suffixes), and 8-lead thin shrink small-outline packages (PW and PWR suffixes).
