Texas Instruments
CD4508BNSR
CD4508BNSR
Regular price
$0.38 USD
Regular price
Sale price
$0.38 USD
Unit price
per
Couldn't load pickup availability

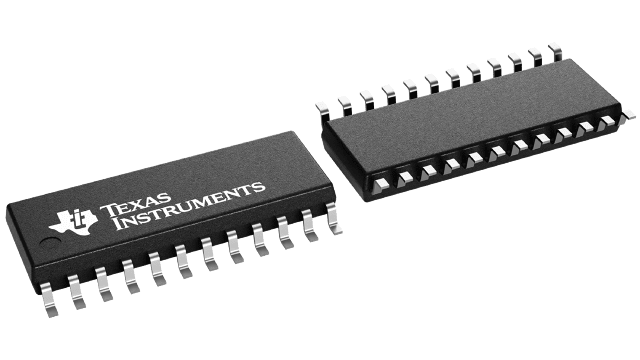

CD4508BNSR Texas Instruments - Yeehing Electronics
CMOS Dual 4-Bit Latch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.228 |
| 100 — 249 | 1.014 |
| 250 — 999 | 0.728 |
| 1,000 + | 0.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Latches |
| RoHS | Y |
| Number of Circuits | 2 Circuit |
| Logic Type | Latch |
| Logic Family | CD408 |
| Polarity | Non-Inverting |
| Quiescent Current | 100 uA |
| Number of Output Lines | 3 Line |
| High Level Output Current | - 4.2 mA |
| Low Level Output Current | 32 mA |
| Propagation Delay Time | 260 ns at 5 V, 140 ns at 10 V, 100 ns at 15 V |
| Supply Voltage - Max | 18 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | SOP-24 |
| Packaging | Reel |
| Function | Transparent |
| Height | 1.95 mm |
| Length | 15 mm |
| Output Type | 3-State |
| Series | CD4508B |
| Type | D-Type |
| Width | 5.3 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Number of Channels | 8 Channel |
| Number of Input Lines | 8 Line |
| Supply Current - Max | 80 nA |
| Operating Supply Voltage | 3 V to 18 V |
| Product Type | Latches |
| Reset Type | Master Reset |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.010857 oz |
For more information, please refer to datasheet
Documents
| CD4508BNSR Datasheet |
