CD4543BM96


YeeHing #: Y009-CD4543BM96
Inventory: 6200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

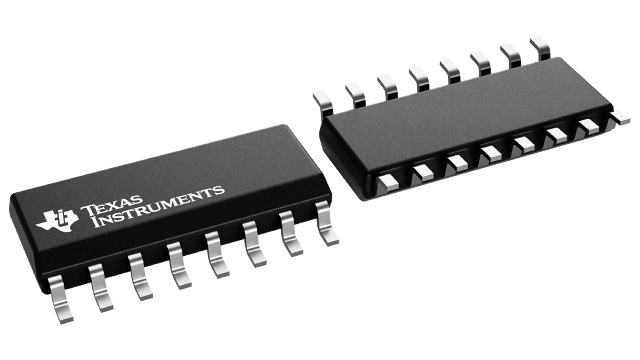

CD4543BM96 Texas Instruments - Yeehing Electronics

CMOS BCD-to-Seven-Segment Latch/Decoder/Driver for Liquid-Crystal Displays

Pricing (USD)

Quantity Unit Price
1 — 99 0.293
100 — 249 0.199
250 — 999 0.154
1,000 + 0.07

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Encoders, Decoders, Multiplexers & Demultiplexers
RoHS Y
Product Decoders / Demultiplexers
Logic Family CD4000
Number of Input Lines 4 Input
Number of Output Lines 7 Output
Propagation Delay Time 400 ns
Supply Voltage - Min 3 V
Supply Voltage - Max 18 V
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case SOP-16
Packaging Reel
Height 1.58 mm
Length 9.9 mm
Operating Temperature Range - 55 C to + 125 C
Series CD4543B
Width 3.91 mm
Brand Texas Instruments
High Level Output Current - 1.5 mA
Low Level Output Current 1.5 mA
Maximum Clock Frequency 8 MHz
Operating Supply Voltage 3 V to 18 V
Product Type Encoders, Decoders, Multiplexers & Demultiplexers
Factory Pack Quantity 2500
Subcategory Logic ICs
Unit Weight 0.004998 oz

For more information, please refer to datasheet

Documents

CD4543BM96 Datasheet

More Information

CD4543B is a BCD-to-seven segment latch/decoder/driver designed primarily for liquid-crystal display (LCD) applications. It is also capable of driving light emitting diode (LED), incandescent, gas-discharge, and fluorescent displays. This device is functionally similar to and serves as direct replacement for the CD4056B when pin 7 is connected to VSS. It differs from the CD4056B in that it has a display blanking capability instead of a level-shifting function and requires only one power supply. When the CD4056B is used in the level shifting mode, two power supplies are required. When the CD4543B is used for LCD applications, a square wave must be applied to the PHASE input and the backplane of the LCD device. For LED applications a logic 1 is required at the PHASE input for common-cathode devices; a logic 0 is required for common-anode devices (see truth table).
