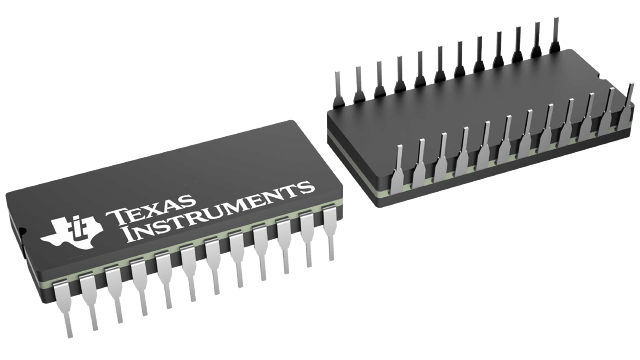

CD54HC154F3A Texas Instruments - Yeehing Electronics
High Speed CMOS Logic 4-to-16 Line Decoder/Demultiplexer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 29.162 |
| 100 — 249 | 25.922 |
| 250 — 999 | 21.309 |
| 1,000 + | 13.34 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| CD54HC154F3A Datasheet |
More Information
The HC154 and HCT154 are 4-to-16 line decoders/demultiplexers with two enable inputs, E1 and E2. A High on either enable input forces the output into the High state. The demultiplexing function is performed by using the four input lines, A0 to A3, to select the output lines Y0 to Y15, and using one enable as the data input while holding the other enable low.
