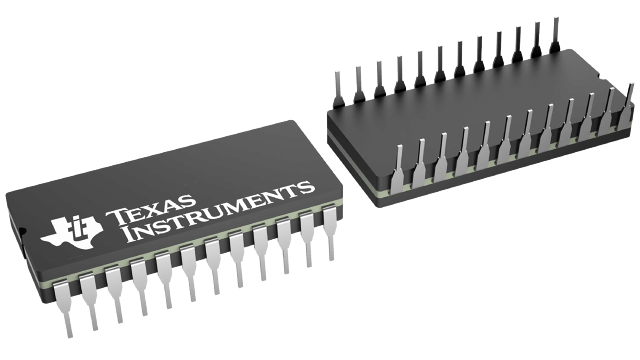

CD54HC4514F3A Texas Instruments - Yeehing Electronics

High Speed CMOS Logic 4-to-16 Line Decoder/Demultiplexer with Input Latches

Pricing (USD)

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

More Information

The CD54HC4514, CD74HC4514, and CD74HC4515 are high-speed silicon gate devices consisting of a 4-bit strobed latch and a 4-to-16 line decoder. The selected output is enabled by a low on the enable input (E). A high on E inhibits selection of any output. Demultiplexing is accomplished by using the E input as the data input and the select inputs (A0-A3) as addresses. This E input also serves as a chip select when these devices are cascaded.
