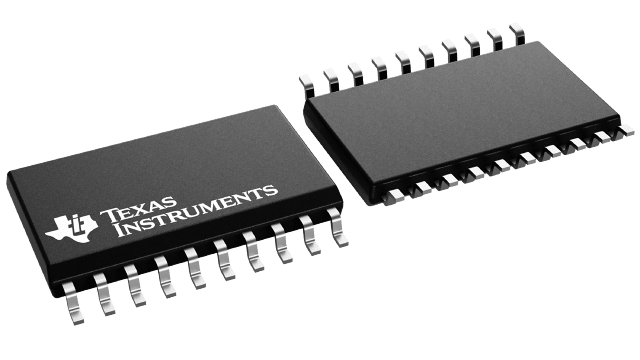

CD74FCT541M Texas Instruments - Yeehing Electronics
8-ch, 4.75-V to 5.25-V buffers with TTL-compatible CMOS inputs and 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.399 |
| 100 — 249 | 3.587 |
| 250 — 999 | 2.819 |
| 1,000 + | 1.67 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Number of Input Lines | 8 Input |
| Number of Output Lines | 8 Output |
| Polarity | Non-Inverting |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-20 |
| Packaging | Tube |
| Function | Buffer/Line Driver |
| Height | 2.35 mm |
| Length | 12.8 mm |
| Operating Temperature Range | 0 C to + 70 C |
| Output Type | 3-State |
| Quiescent Current | 8 uA |
| Series | CD74FCT541 |
| Technology | CMOS |
| Width | 7.52 mm |
| Brand | Texas Instruments |
| Logic Family | FCT |
| Logic Type | CMOS |
| Number of Channels | 8 |
| Supply Current - Max | 8 uA |
| High Level Output Current | - 15 mA |
| Input Signal Type | Single-Ended |
| Low Level Output Current | 64 mA |
| Operating Supply Current | 80 uA |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 6 ns at 5 V |
| Factory Pack Quantity | 25 |
| Subcategory | Logic ICs |
| Unit Weight | 0.017662 oz |
For more information, please refer to datasheet
Documents
| CD74FCT541M Datasheet |
More Information
The CD74FCT541 is an octal buffer/driver with 3-state outputs that is ideal for driving bus lines or buffer memory address registers and uses a small-geometry BiCMOS technology. The output stage is a combination of bipolar and CMOS transistors that limits the output high level to two diode drops below VCC. This resultant lowering of output swing (0 V to 3.7 V) reduces power-bus ringing [a source of electromagnetic interference (EMI)] and minimizes VCC bounce and ground bounce and their effects during simultaneous output switching. The output configuration also enhances switching speed and is capable of sinking 64 mA.
