Texas Instruments
CDC111FN
CDC111FN
Regular price
$9.34 USD
Regular price
Sale price
$9.34 USD
Unit price
per
Couldn't load pickup availability

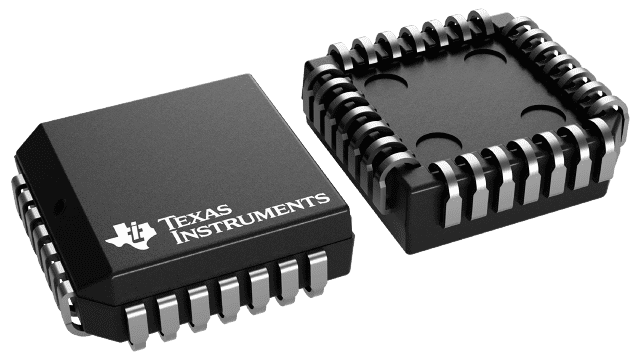

CDC111FN Texas Instruments - Yeehing Electronics
3.3-V LVPECL differential clock driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 22.158 |
| 100 — 249 | 19.355 |
| 250 — 999 | 14.923 |
| 1,000 + | 9.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Clock Buffer |
| RoHS | Y |
| Series | CDC111 |
| Number of Outputs | 18 Output |
| Maximum Input Frequency | 500 MHz |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | PLCC-28 |
| Packaging | Tube |
| Height | 4.06 mm |
| Input Type | LVECL, LVPECL |
| Length | 11.51 mm |
| Output Type | LVPECL |
| Type | Clock Drivers |
| Width | 11.51 mm |
| Brand | Texas Instruments |
| Max Output Freq | 500 MHz |
| Operating Supply Current | 80 mA |
| Pd - Power Dissipation | 525 mW |
| Product Type | Clock Buffer |
| Factory Pack Quantity | 37 |
| Subcategory | Clock & Timer ICs |
| Unit Weight | 0.041719 oz |
For more information, please refer to datasheet
Documents
| CDC111FN Datasheet |
More Information
The differential LVPECL clock-driver circuit distributes one pair of differential LVPECL clock inputs (CLKIN, CLKIN) to nine pairs of differential clock (Y, Y) outputs with minimum skew for clock distribution. It is specifically designed for driving 50- transmission lines.
