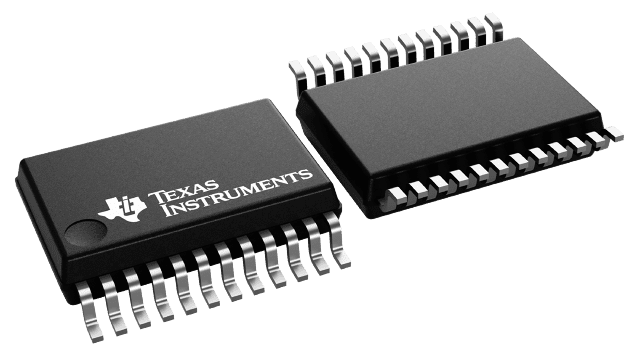

CDC2351DBR Texas Instruments - Yeehing Electronics

1-line to 10-line clock driver with 3-state outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	9.537
100 — 249	8.33
250 — 999	6.423
1,000 +	4.60

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Clock Drivers & Distribution
RoHS	Y
Series	CDC2351
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	SSOP-24
Packaging	Reel
Height	1.95 mm
Length	8.2 mm
Number of Outputs	10
Width	5.3 mm
Brand	Texas Instruments
Maximum Input Frequency	100 MHz
Pd - Power Dissipation	650 mW
Product Type	Clock Drivers & Distribution
Factory Pack Quantity	2000
Subcategory	Clock & Timer ICs
Unit Weight	0.059966 oz

For more information, please refer to datasheet

Documents

CDC2351DBR Datasheet

More Information

The CDC2351 is a high-performance clock-driver circuit that distributes one input (A) to ten outputs (Y) with minimum skew for clock distribution. The output-enable (OE) input disables the outputs to a high-impedance state. Each output has an internal series damping resistor to improve signal integrity at the load. The CDC2351 operates at nominal 3.3-V VCC.
