CDC3RL02BYFPR Texas Instruments - Yeehing Electronics

Dual-channel square/sine-to-square wave clock buffer

Pricing (USD)

Quantity	Unit Price
1 — 99	1.223
100 — 249	1.01
250 — 999	0.726
1,000 +	0.31

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Clock Buffer
RoHS	Y
Series	CDC3RL02
Number of Outputs	2 Output
Maximum Input Frequency	52 MHz
Propagation Delay - Max	11 ns
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

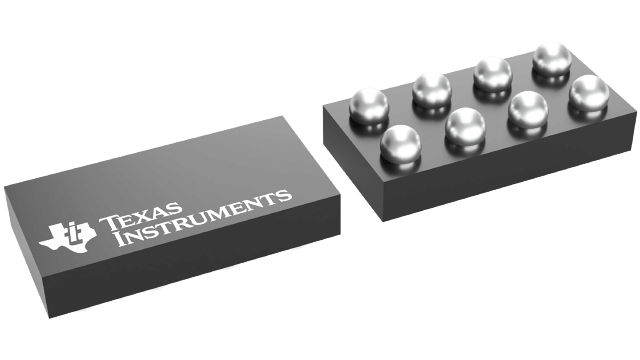

Package / Case	DSBGA-8
Packaging	Reel
Height	0.5 mm
Length	1.59 mm
Product	Fanout Buffers
Type	Fanout Buffer
Width	0.79 mm
Brand	Texas Instruments
Duty Cycle - Max	55 %
Product Type	Clock Buffer
Factory Pack Quantity	3000
Subcategory	Clock & Timer ICs
Unit Weight	0.000081 oz

For more information, please refer to datasheet

Documents

CDC3RL02BYFPR Datasheet

More Information

The CDC3RL02 is a two-channel clock fan-out buffer and is ideal for use in portable end-equipment, such as mobile phones, that require clock buffering with minimal additive phase noise and fan-out capabilities. It buffers a single master clock, such as a temperature compensated crystal oscillator (TCXO) to multiple peripherals. The device has two clock request inputs (CLK_REQ1 and CLK_REQ2), each of which enable a single clock output.
