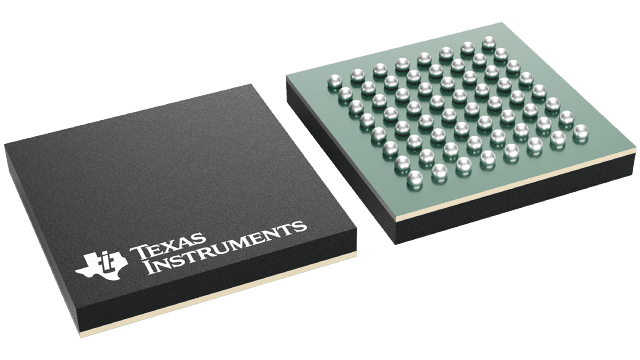

CDC7005ZVA Texas Instruments - Yeehing Electronics
High performance, low phase noise, low skew clock synchronizer that synchronizes ref clock to VCXO
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 18.26 |
100 — 249 | 15.95 |
250 — 999 | 12.298 |
1,000 + | 7.70 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Clock Synthesizer / Jitter Cleaner |
RoHS | Y |
Series | CDC7005 |
Number of Outputs | 5 Output |
Output Level | LVPECL |
Max Output Freq | 800 MHz |
Input Level | LVCMOS, LVPECL |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | BGA-64 |
Packaging | Reel |
Features | OPAMP for Active Loop Filter, Programmable Delay |
Height | 0.96 mm |
Length | 8 mm |
Width | 8 mm |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Voltage | 3 V to 3.6 V |
Product Type | Clock Synthesizer / Jitter Cleaner |
Factory Pack Quantity | 250 |
Subcategory | Clock & Timer ICs |
Unit Weight | 0.000006 oz |
For more information, please refer to datasheet
Documents
CDC7005ZVA Datasheet |
More Information
The CDC7005 is a high-performance, low-phase noise, and low-skew clock synchronizer and jitter cleaner that synchronizes the voltage controlled crystal oscillator (VCXO) frequency to the reference clock. The programmable predividers M and N give a high flexibility to the frequency ratio of the reference clock to VCXO: VCXO_IN/REF_IN = (NxP)/M. The VCXO_IN clock operates up to 800 MHz. Through the selection of external VCXO and loop filter components, the PLL loop bandwidth and damping factor can be adjusted to meet different system requirements. Each of the five differential LVPECL outputs is programmable by the serial peripheral interface (SPI). The SPI allows individual control of frequency and enable/disable state of each output. The device operates in 3.3-V environment. The built-in latches ensure that all outputs are synchronized.
