CDC7005ZVAR


YeeHing #: Y003-CDC7005ZVAR
Inventory: 6000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

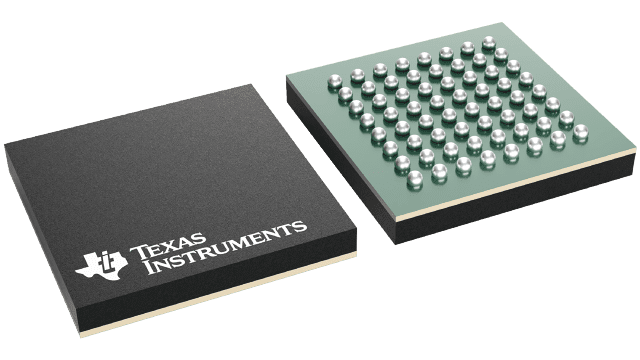

CDC7005ZVAR Texas Instruments - Yeehing Electronics

High performance, low phase noise, low skew clock synchronizer that synchronizes ref clock to VCXO

Pricing (USD)

Quantity Unit Price
1 — 99 15.338
100 — 249 13.398
250 — 999 10.33
1,000 + 6.47

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Clock Synthesizer / Jitter Cleaner
RoHS Y
Series CDC7005
Number of Outputs 5 Output
Output Level LVPECL
Max Output Freq 800 MHz
Input Level LVCMOS, LVPECL
Supply Voltage - Max 3.6 V
Supply Voltage - Min 3 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case BGA-64
Packaging Reel
Features OPAMP for Active Loop Filter, Programmable Delay
Height 0.96 mm
Length 8 mm
Width 8 mm
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Voltage 3 V to 3.6 V
Product Type Clock Synthesizer / Jitter Cleaner
Factory Pack Quantity 1000
Subcategory Clock & Timer ICs
Unit Weight 0.000006 oz

For more information, please refer to datasheet

Documents

CDC7005ZVAR Datasheet

More Information

The CDC7005 is a high-performance, low-phase noise, and low-skew clock synchronizer and jitter cleaner that synchronizes the voltage controlled crystal oscillator (VCXO) frequency to the reference clock. The programmable predividers M and N give a high flexibility to the frequency ratio of the reference clock to VCXO: VCXO_IN/REF_IN = (NxP)/M. The VCXO_IN clock operates up to 800 MHz. Through the selection of external VCXO and loop filter components, the PLL loop bandwidth and damping factor can be adjusted to meet different system requirements. Each of the five differential LVPECL outputs is programmable by the serial peripheral interface (SPI). The SPI allows individual control of frequency and enable/disable state of each output. The device operates in 3.3-V environment. The built-in latches ensure that all outputs are synchronized.
