CDCDB2000NPPT Texas Instruments - Yeehing Electronics
DB2000QL compliant 20-output clock buffer for PCIe® Gen 1 to Gen 5
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.078 |
| 100 — 249 | 4.14 |
| 250 — 999 | 3.254 |
| 1,000 + | 1.93 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| CDCDB2000NPPT Datasheet |
More Information

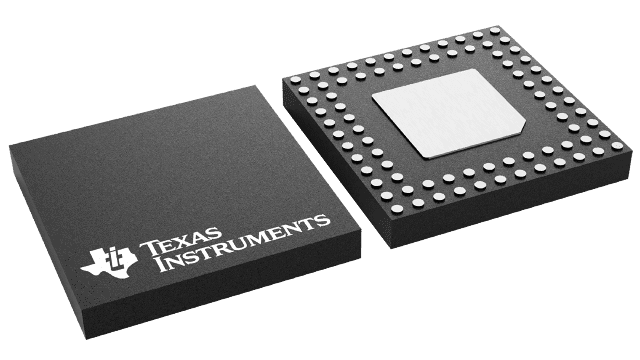

The CDCDB2000 is a 20-output LP-HCSL, DB2000QL compliant, clock buffer capable of distributing the reference clock for PCIe Gen 1-5, QuickPath Interconnect (QPI), UPI, SAS, and SATA interfaces. The SMBus, SBI, and 8 output enable pins allow the configuration and control of all 20 outputs individually. The CDCDB2000 is a DB2000QL derivative buffer and meets or exceeds the system parameters in the DB2000QL specification. The CDCDB2000 is packaged in a 6-mm × 6-mm TLGA/GQFN package with 80 leads.
