CDCLVC1310RHBR Texas Instruments - Yeehing Electronics
Universal input, 10-output low impedance LVCMOS buffer
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.066 |
100 — 249 | 3.315 |
250 — 999 | 2.606 |
1,000 + | 1.30 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Clock Buffer |
RoHS | Y |
Series | CDCLVC1310 |
Number of Outputs | 10 Output |
Maximum Input Frequency | 200 MHz |
Propagation Delay - Max | 2 ns |
Supply Voltage - Max | 3.465 V |
Supply Voltage - Min | 2.375 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |

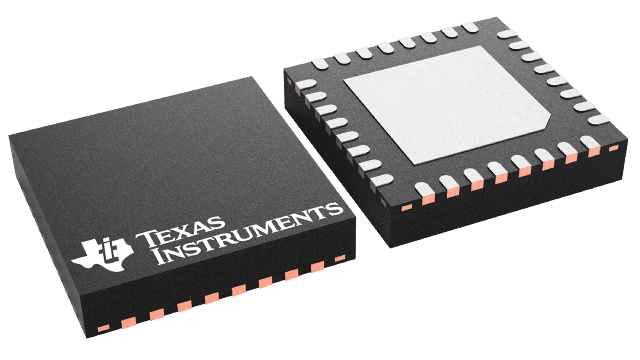

Package / Case | VQFN-32 |
Packaging | Reel |
Input Type | HCSL, LVCMOS, LVDS, LVPECL, SSTL, XTAL |
Output Type | LVCMOS |
Brand | Texas Instruments |
Max Output Freq | 200 MHz |
Development Kit | CDCLVC1310-EVM |
Moisture Sensitive | Yes |
Operating Supply Current | 20 V |
Product Type | Clock Buffer |
Factory Pack Quantity | 3000 |
Subcategory | Clock & Timer ICs |
Unit Weight | 0.002547 oz |
For more information, please refer to datasheet
Documents
CDCLVC1310RHBR Datasheet |
More Information
The CDCLVC1310 is a highly versatile, low-jitter, low-power clock fanout buffer which can distribute to ten low-jitter LVCMOS clock outputs from one of three inputs, whose primary and secondary inputs can feature differential or single-ended signals and crystal input. Such a buffer is good for use in a variety of mobile and wired infrastructure, data communication, computing, low-power medical imaging, and portable test and measurement applications. When the input is an illegal level, the output is at a defined state. One can set the core to 2.5 V or 3.3 V, and output to 1.5 V, 1.8 V, 2.5 V or 3.3 V. Pin programming easily configures the CDCLVC1310. The overall additive jitter performance is 25 fsRMS (typical). The CDCLVC1310 comes in a small 32-pin 5-mm × 5-mm QFN package.
