Texas Instruments

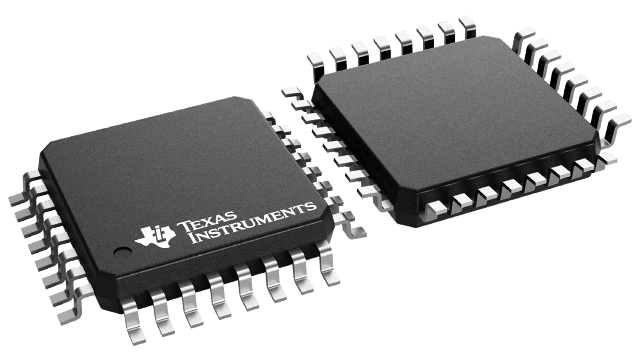

CDCLVD110AVF
CDCLVD110AVF
Regular price
$4.58 USD
Regular price
Sale price
$4.58 USD
Unit price
per
Couldn't load pickup availability
CDCLVD110AVF Texas Instruments - Yeehing Electronics
1-to-10 LVDS clock buffer up to 1100-MHz with minimum skew for clock distribution
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.86 |
| 100 — 249 | 9.486 |
| 250 — 999 | 7.314 |
| 1,000 + | 4.58 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Clock Buffer |
| RoHS | Y |
| Series | CDCLVD110A |
| Number of Outputs | 10 Output |
| Maximum Input Frequency | 1100 MHz |
| Propagation Delay - Max | 3 ns |
| Supply Voltage - Max | 2.625 V |
| Supply Voltage - Min | 2.375 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-32 |
| Packaging | Tray |
| Height | 1.4 mm |
| Input Type | LVDS |
| Length | 7 mm |
| Output Type | LVDS |
| Type | LVDS Clock Buffers |
| Width | 7 mm |
| Brand | Texas Instruments |
| Duty Cycle - Max | 55 % |
| Max Output Freq | 1100 MHz |
| Operating Supply Current | 150 mA |
| Product Type | Clock Buffer |
| Factory Pack Quantity | 250 |
| Subcategory | Clock & Timer ICs |
| Unit Weight | 0.005993 oz |
For more information, please refer to datasheet
Documents
| CDCLVD110AVF Datasheet |
More Information
The CDCLVD110A clock driver distributes one pair of differential LVDS clock inputs (either CLK0 or CLK1) to 10 pairs of differential clock outputs (Q0 to Q9) with minimum skew for clock distribution. The CDCLVD110A is specifically designed to drive 50-Ω transmission lines.
