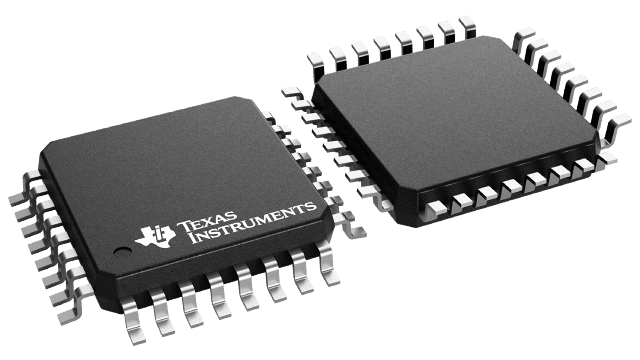

Texas Instruments
CDCLVP110MVFR
CDCLVP110MVFR
Regular price
$3.91 USD
Regular price
Sale price
$3.91 USD
Unit price
per
Couldn't load pickup availability
CDCLVP110MVFR Texas Instruments - Yeehing Electronics
1:10 LVPECL/HSTL to LVPECL clock driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.286 |
| 100 — 249 | 8.385 |
| 250 — 999 | 6.591 |
| 1,000 + | 3.91 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Clock Drivers & Distribution |
| RoHS | Y |
| Series | CDCLVP110 |
| Output Type | LVECL, LVPECL |
| Supply Voltage - Max | 3.8 V |
| Supply Voltage - Min | 2.375 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-32 |
| Packaging | Reel |
| Height | 1.4 mm |
| Length | 7 mm |
| Number of Outputs | 10 |
| Type | Clock Drivers |
| Width | 7 mm |
| Brand | Texas Instruments |
| Maximum Input Frequency | 3.5 kHz |
| Operating Supply Current | 85 mA |
| Product Type | Clock Drivers & Distribution |
| Factory Pack Quantity | 1000 |
| Subcategory | Clock & Timer ICs |
| Unit Weight | 0.005993 oz |
For more information, please refer to datasheet
Documents
| CDCLVP110MVFR Datasheet |
More Information
The CDCLVP110 clock driver distributes one differential clock pair of either LVPECL or HSTL (selectable) input, (CLK0, CLK1) to ten pairs of differential LVPECL clock (Q0, Q9) outputs with minimum skew for clock distribution. The CDCLVP110 can accept two clock sources into an input multiplexer. The CLK0 input accepts either LVECL/LVPECL input signals, while CLK1 accepts an HSTL input signal when operated under LVPECL conditions. The CDCLVP110 is specifically designed for driving 50-Ω transmission lines.
