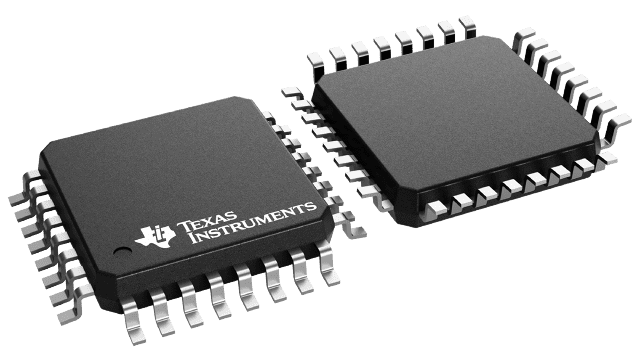

CDCLVP111MVFREP Texas Instruments - Yeehing Electronics

HiRel, 1:10 LVPECL buffer with selectable input

Pricing (USD)

Quantity	Unit Price
1 — 99	35.184
100 — 249	31.275
250 — 999	25.71
1,000 +	16.10

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

CDCLVP111MVFREP Datasheet

More Information

The CDCLVP111 clock driver distributes one differential clock pair of LVPECL input, (CLK0, CLK1) to ten pairs of differential LVPECL clock (Q0, Q9) outputs with minimum skew for clock distribution. The CDCLVP111 can accept two clock sources into an input multiplexer. The CDCLVP111 is specifically designed for driving 50-Ω transmission lines. When an output pin is not used, leaving it open is recommended to reduce power consumption. If only one of the output pins from a differential pair is used, the other output pin must be identically terminated to 50 Ω.
