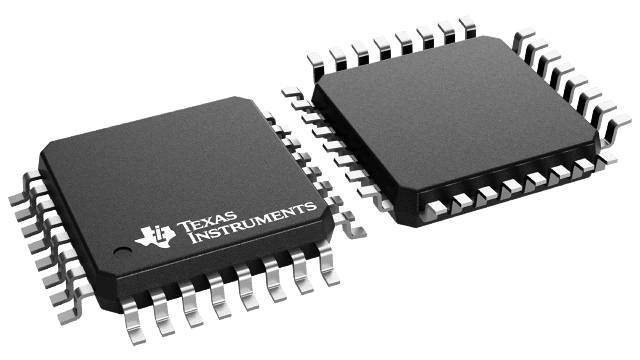

CDCLVP111VF Texas Instruments - Yeehing Electronics

1:10 LVPECL buffer with selectable input

Pricing (USD)

Quantity	Unit Price
1 — 99	8.114
100 — 249	6.615
250 — 999	5.199
1,000 +	3.09

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Clock Buffer
RoHS	Y
Series	CDCLVP111
Number of Outputs	10 Output
Maximum Input Frequency	3500 MHz
Supply Voltage - Max	3.8 V
Supply Voltage - Min	2.375 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	LQFP-32
Packaging	Tray
Height	1.4 mm
Input Type	CML, LVDS, LVPECL, SSTL
Length	7 mm
Output Type	LVPECL
Type	Multiplier
Width	7 mm
Brand	Texas Instruments
Max Output Freq	3500 MHz
Operating Supply Current	40 mA to 85 mA
Product Type	Clock Buffer
Factory Pack Quantity	250
Subcategory	Clock & Timer ICs
Unit Weight	0.005993 oz

For more information, please refer to datasheet

Documents

CDCLVP111VF Datasheet

More Information

The CDCLVP111 clock driver distributes one differential clock pair of LVPECL input, (CLK0, CLK1) to ten pairs of differential LVPECL clock (Q0, Q9) outputs with minimum skew for clock distribution. The CDCLVP111 can accept two clock sources into an input multiplexer. The CDCLVP111 is specifically designed for driving 50-Ω transmission lines. When an output pin is not used, leaving it open is recommended to reduce power consumption. If only one of the output pins from a differential pair is used, the other output pin must be identically terminated to 50 Ω.
