Texas Instruments
CDCM1804RGET
CDCM1804RGET
Regular price
$4.58 USD
Regular price
Sale price
$4.58 USD
Unit price
per
Couldn't load pickup availability

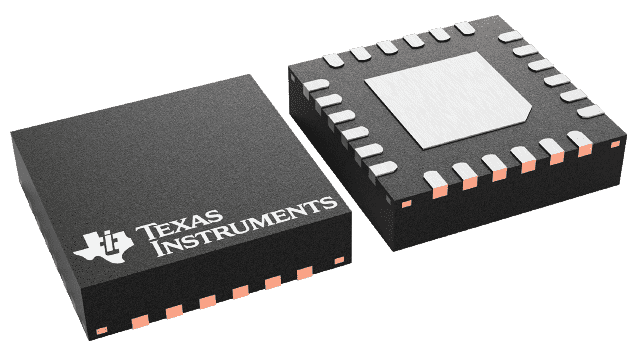

CDCM1804RGET Texas Instruments - Yeehing Electronics
1:3 LVPECL clock buffer & LVCMOS output & programmable divider
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.86 |
| 100 — 249 | 9.486 |
| 250 — 999 | 7.314 |
| 1,000 + | 4.58 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Clock Buffer |
| RoHS | Y |
| Series | CDCM1804 |
| Number of Outputs | 3 Output |
| Maximum Input Frequency | 800 MHz |
| Propagation Delay - Max | 2.6 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Packaging | Reel |
| Input Type | LVPECL |
| Output Type | LVCMOS, LVPECL |
| Brand | Texas Instruments |
| Max Output Freq | 800 MHz |
| Moisture Sensitive | Yes |
| Operating Supply Current | 110 mA |
| Product Type | Clock Buffer |
| Factory Pack Quantity | 250 |
| Subcategory | Clock & Timer ICs |
| Unit Weight | 0.001601 oz |
For more information, please refer to datasheet
Documents
| CDCM1804RGET Datasheet |
More Information
The CDCM1804 clock driver distributes one pair of differential clock inputs to three pairs of LVPECL differential clock outputs Y[2:0] and Y[2:0], with minimum skew for clock distribution. The CDCM1804 is specifically designed for driving 50- transmission lines. Additionally, the CDCM1804 offers a single-ended LVCMOS output Y3. This output is delayed by 1.6 ns over the three LVPECL output stages to minimize noise impact during signal transitions.
