CDCM7005ZVA Texas Instruments - Yeehing Electronics

High performance, low phase noise, low skew clock synchronizer that synchronizes ref clock to VCXO

Pricing (USD)

Quantity	Unit Price
1 — 99	17.347
100 — 249	15.153
250 — 999	11.683
1,000 +	7.31

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Clock Synthesizer / Jitter Cleaner
RoHS	Y
Series	CDCM7005
Number of Outputs	5 Output
Output Level	LVPECL
Max Output Freq	1500 MHz
Input Level	LVCMOS, LVPECL
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

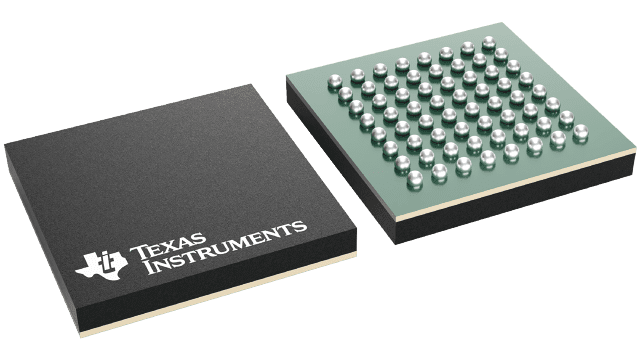

Package / Case	BGA-64
Packaging	Tray
Features	Programmable Delay
Height	0.96 mm
Length	8 mm
Width	8 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3 V to 3.6 V
Product Type	Clock Synthesizer / Jitter Cleaner
Factory Pack Quantity	348
Subcategory	Clock & Timer ICs
Unit Weight	0.000006 oz

For more information, please refer to datasheet

Documents

CDCM7005ZVA Datasheet

More Information

The CDCM7005 is a high-performance, low phase noise and low skew clock synchronizer that synchronizes a VCXO (voltage controlled crystal oscillator) or VCO (voltage controlled oscillator) frequency to one of the two reference clocks. The programmable pre-divider M and the feedback-dividers N and P give a high flexibility to the frequency ratio of the reference clock to VC(X)O
