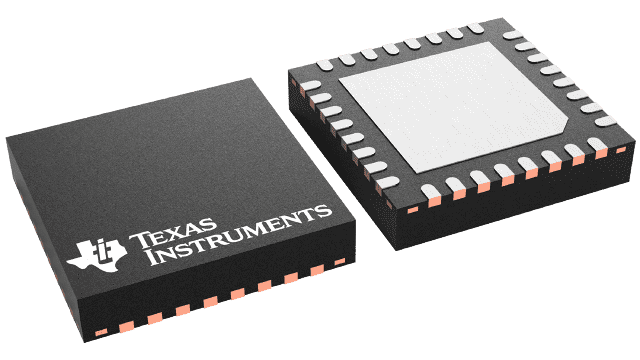

CDCUN1208LPRHBT


YeeHing #: Y003-CDCUN1208LPRHBT
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CDCUN1208LPRHBT Texas Instruments - Yeehing Electronics

Ultra-low power, 2:8 fan-out buffer with universal inputs and outputs

Pricing (USD)

Quantity Unit Price
1 — 99 9.203
100 — 249 8.039
250 — 999 6.198
1,000 + 3.88

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Clock Drivers & Distribution
RoHS Y
Series CDCUN1208LP
Multiply / Divide Factor 2
Output Type HCSL, LVDS, LVCMOS
Max Output Freq 400 MHz
Supply Voltage - Max 3.6 V
Supply Voltage - Min 1.7 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case VQFN-32
Packaging Reel
Number of Outputs 8
Type Fanout Buffers
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Current 4 mA
Product Type Clock Drivers & Distribution
Factory Pack Quantity 250
Subcategory Clock & Timer ICs
Unit Weight 0.002547 oz

For more information, please refer to datasheet

Documents

CDCUN1208LPRHBT Datasheet

More Information

The CDCUN1208LP is a 2:8 fan-out buffer featuring a wide operating supply range, two universal differential/single-ended inputs, and universal outputs (HCSL, LVDS, or LVCMOS) with edge-rate control. The clock buffer supports PCIe Gen1, Gen2 and Gen3. One of the device inputs includes a divider that provides divide values of /1, /2, /4, or /8. The CDCUN1208LP is offered in a 32-pin QFN package, reducing the solution footprint. The device is flexible and easy to use. The state of certain pins determines device configuration at power up. Alternately, the CDCUN1208LP provides a SPI/I2C port with which a host processor controls device settings. The CDCUN1208LP delivers excellent additive jitter performance, and low power consumption. The output section includes four dedicated supply pins enabling the operation of output ports from different power supply domains. This provides the ability to clock devices switching at different LVCMOS levels without the need for external logic level translation circuitry.
