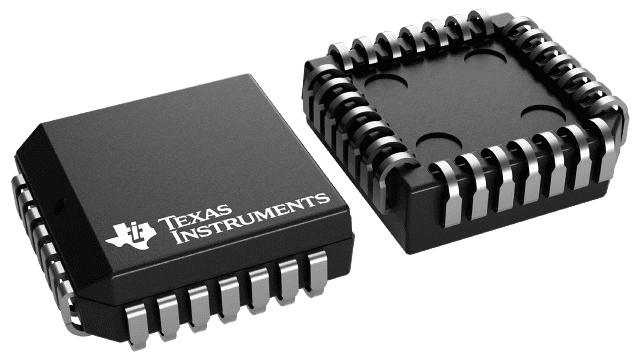

CDCVF111FN Texas Instruments - Yeehing Electronics

1:9 differential LVPECL clock driver

Pricing (USD)

Quantity	Unit Price
1 — 99	17.636
100 — 249	15.405
250 — 999	11.878
1,000 +	7.44

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Clock Drivers & Distribution
RoHS	Y
Series	CDCVF111
Multiply / Divide Factor	1
Output Type	LVPECL
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	PLCC-28
Packaging	Tube
Height	4.06 mm
Input Type	LVECL, LVPECL
Length	11.51 mm
Number of Outputs	18
Type	Differential
Width	11.51 mm
Brand	Texas Instruments
Maximum Input Frequency	650 MHz
Operating Supply Current	100 mA
Pd - Power Dissipation	525 mW
Product Type	Clock Drivers & Distribution
Factory Pack Quantity	37
Subcategory	Clock & Timer ICs
Unit Weight	0.041719 oz

For more information, please refer to datasheet

Documents

CDCVF111FN Datasheet

More Information

The differential LVPECL clock-driver circuit distributes one pair of differential LVPECL clock inputs (CLKIN, CLKIN) to nine pairs of differential clock (Y, Y) outputs with minimum skew for clock distribution. It is specifically designed for driving 50- transmission lines.
