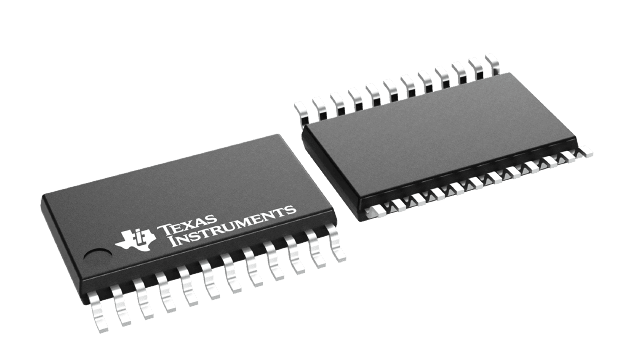

CDCVF2310MPWREP


YeeHing #: Y003-CDCVF2310MPWREP
Inventory: 7600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CDCVF2310MPWREP Texas Instruments - Yeehing Electronics

Enhanced Product 2.5-V to 3.3-V high performance clock buffer

Pricing (USD)

Quantity Unit Price
1 — 99 9.993
100 — 249 8.729
250 — 999 6.73
1,000 + 4.21

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Clock Buffer
RoHS Y
Series CDCVF2310-EP
Number of Outputs 10 Output
Maximum Input Frequency 200 MHz
Supply Voltage - Max 3.6 V
Supply Voltage - Min 2.3 V
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case TSSOP-24
Packaging Reel
Input Type LVTTL
Output Type LVTTL
Brand Texas Instruments
Max Output Freq 200 MHz
Operating Supply Current 5 uA
Product Type Clock Buffer
Factory Pack Quantity 2000
Subcategory Clock & Timer ICs
Part # Aliases V62/13603-01XE
Unit Weight 0.007478 oz

For more information, please refer to datasheet

Documents

CDCVF2310MPWREP Datasheet

More Information

The CDCVF2310 is a high-performance, low-skew clock buffer that operates up to 200 MHz. Two banks of five outputs each provide low-skew copies of CLK. After power up, the default state of the outputs is low regardless of the state of the control pins. For normal operation, the outputs of bank 1Y[0:4] or 2Y[0:4] can be placed in a low state when the control pins (1G or 2G, respectively) are held low and a negative clock edge is detected on the CLK input. The outputs of bank 1Y[0:4] or 2Y[0:4] can be switched into the buffer mode when the control pins (1G and 2G) are held high and a negative clock edge is detected on the CLK input. The device operates in a 2.5-V and 3.3-V environment. The built-in output enable glitch suppression ensures a synchronized output enable sequence to distribute full period clock signals.
