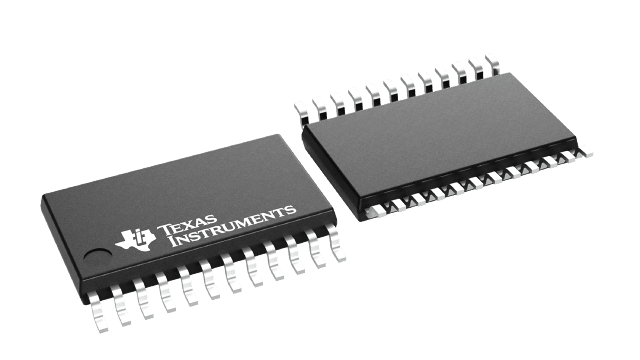

CDCVF310PW Texas Instruments - Yeehing Electronics

High performance 1:10 clock buffer for general purpose applications with support up to 85C

Pricing (USD)

Quantity	Unit Price
1 — 99	3.875
100 — 249	3.159
250 — 999	2.483
1,000 +	1.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Clock Buffer
RoHS	Y
Series	CDCVF310
Number of Outputs	10 Output
Maximum Input Frequency	200 MHz
Propagation Delay - Max	4 ns
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TSSOP-24
Packaging	Reel
Height	1.15 mm
Input Type	LVTTL
Length	7.8 mm
Output Type	LVTTL
Width	4.4 mm
Brand	Texas Instruments
Max Output Freq	200 MHz
Product Type	Clock Buffer
Factory Pack Quantity	2000
Subcategory	Clock & Timer ICs
Unit Weight	0.003157 oz

For more information, please refer to datasheet

Documents

CDCVF310PW Datasheet

More Information

The CDCVF310 is a high-performance, low-skew clock buffer that operates up to 200 MHz. Two banks of five outputs each provide low-skew copies of CLK. After power up, the default state of the outputs is low regardless of the state of the control pins. For normal operation, the outputs of bank 1Y[0:4] or 2Y[0:4] can be placed in a low state when the control pins (1G or 2G, respectively) are held low and a negative clock edge is detected on the CLK input. The outputs of bank 1Y[0:4] or 2Y[0:4] can be switched into the buffer mode when the control pins (1G and 2G) are held high and a negative clock edge is detected on the CLK input. The device operates in a 2.5-V and 3.3-V environment. The built-in output enable glitch suppression ensures a synchronized output enable sequence to distribute full period clock signals.
