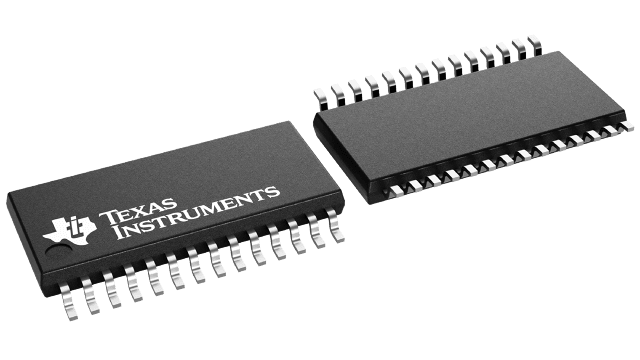

CDCVF855PWR


YeeHing #: Y003-CDCVF855PWR
Inventory: 4400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CDCVF855PWR Texas Instruments - Yeehing Electronics

2.5-V phase lock loop DDR clock driver

Pricing (USD)

Quantity Unit Price
1 — 99 3.495
100 — 249 3.062
250 — 999 2.147
1,000 + 1.21

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Clock Drivers & Distribution
RoHS Y
Series CDCVF855
Supply Voltage - Max 2.7 V
Supply Voltage - Min 2.18 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case TSSOP-28
Packaging Reel
Height 1.15 mm
Length 9.7 mm
Type Zero Delay PLL Clock Driver
Width 4.4 mm
Brand Texas Instruments
Product Type Clock Drivers & Distribution
Factory Pack Quantity 2000
Subcategory Clock & Timer ICs
Unit Weight 0.004145 oz

For more information, please refer to datasheet

Documents

CDCVF855PWR Datasheet

More Information

The CDCVF855 is a high-performance, low-skew, low-jitter, zero-delay buffer that distributes a differential clock input pair (CLK, CLK) to 4 differential pairs of clock outputs (Y[0:3], Y[0:3]) and one differential pair of feedback clock outputs (FBOUT, FBOUT). The clock outputs are controlled by the clock inputs (CLK, CLK), the feedback clocks (FBIN, FBIN), and the analog power input (AVDD). When PWRDWN is high, the outputs switch in phase and frequency with CLK. When PWRDWN is low, all outputs are disabled to a high-impedance state (3-state) and the PLL is shut down (low-power mode). The device also enters this low-power mode when the input frequency falls below a suggested detection frequency that is below 20 MHz (typical 10 MHz). An input frequency-detection circuit detects the low-frequency condition and, after applying a >20-MHz input signal, this detection circuit turns the PLL on and enables the outputs.
