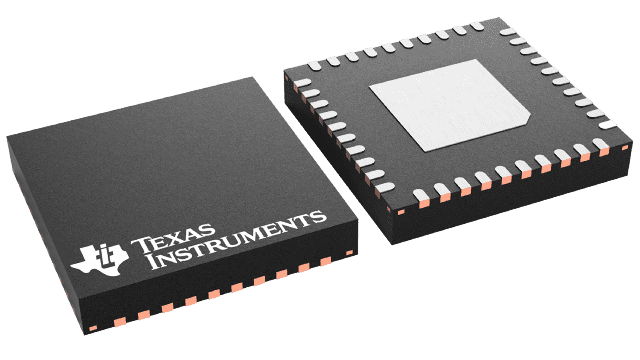

CDCVF857RHAT Texas Instruments - Yeehing Electronics

2.5-V phase lock loop DDR clock driver

Pricing (USD)

Quantity	Unit Price
1 — 99	8.962
100 — 249	7.829
250 — 999	6.036
1,000 +	3.78

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Clock Drivers & Distribution
RoHS	Y
Series	CDCVF857
Multiply / Divide Factor	1
Max Output Freq	220 MHz
Supply Voltage - Max	2.7 V
Supply Voltage - Min	2.18 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VQFN-40
Packaging	Reel
Height	0.9 mm
Input Type	Clock
Length	6 mm
Type	Zero Delay PLL Clock Driver
Width	6 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	6 mA
Product Type	Clock Drivers & Distribution
Factory Pack Quantity	250
Subcategory	Clock & Timer ICs
Unit Weight	0.003668 oz

For more information, please refer to datasheet

Documents

CDCVF857RHAT Datasheet

More Information

The CDCVF857 is a high-performance, low-skew, low-jitter, zero-delay buffer that distributes a differential clock input pair (CLK, CLK) to 10 differential pairs of clock outputs (Y[0:9], Y[0:9]) and one differential pair of feedback clock outputs (FBOUT, FBOUT). The clock outputs are controlled by the clock inputs (CLK, CLK), the feedback clocks (FBIN, FBIN), and the analog power input (AVDD). When PWRDWN is high, the outputs switch in phase and frequency with CLK. When PWRDWN is low, all outputs are disabled to a high-impedance state (3-state) and the PLL is shut down (low-power mode). The device also enters this low-power mode when the input frequency falls below a suggested detection frequency that is below 20 MHz (typical 10 MHz). An input frequency detection circuit detects the low frequency condition and, after applying a >20-MHz input signal, this detection circuit turns the PLL on and enables the outputs.
