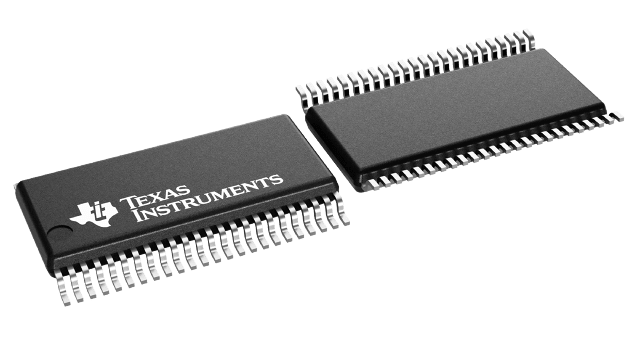

CLVCH16T245MDGVREP Texas Instruments - Yeehing Electronics

Enhanced Product 16-Bit Dual-Supply Bus Transc., Configurable Voltage Translation, 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	4.802
100 — 249	3.915
250 — 999	3.077
1,000 +	1.83

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Translation - Voltage Levels
RoHS	Y
Propagation Delay Time	8.2 ns
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.65 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	TVSOP-48
Packaging	Reel
Data Rate	500 Mb/s
Features	Partial power down (Ioff), Over-voltage tolerant inputs, Output enable, Bus-Hold, Vcc isolation
Operating Temperature Range	- 55 C to + 125 C
Output Type	3-State
Series	SN74LVCH16T245-EP
Brand	Texas Instruments
Logic Family	LVC
Logic Type	CMOS
High Level Output Current	32 mA
Low Level Output Current	32 mA
Product Type	Translation - Voltage Levels
Factory Pack Quantity	2000
Subcategory	Logic ICs
Part # Aliases	V62/09605-01YE
Unit Weight	0.004356 oz

For more information, please refer to datasheet

Documents

CLVCH16T245MDGVREP Datasheet

More Information

This 16-bit noninverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 5.5 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
