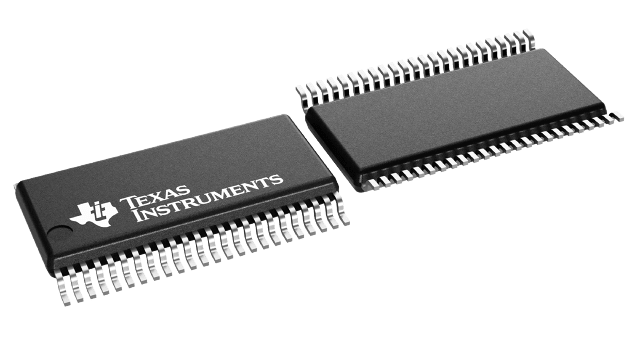

CLVTH16244AIDGVREP Texas Instruments - Yeehing Electronics

Enhanced product 16-ch, 2.7-V to 3.6-V buffers with TTL-compatible CMOS inputs and 3-state outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	3.454
100 — 249	3.027
250 — 999	2.122
1,000 +	1.20

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

CLVTH16244AIDGVREP Datasheet

More Information

The SN74LVTH16244A is a 16-bit buffer and line driver designed for low-voltage (3.3 V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. This device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. This device provides true outputs and symmetrical active-low output-enable (OE) inputs.
