Texas Instruments
CSD16327Q3
CSD16327Q3
Regular price
$0.22 USD
Regular price
Sale price
$0.22 USD
Unit price
per
Couldn't load pickup availability

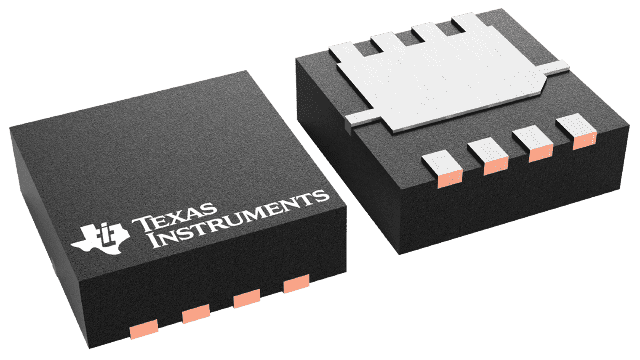

CSD16327Q3 Texas Instruments - Yeehing Electronics
25-V, N channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 4.8 mOhm
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.788 |
| 100 — 249 | 0.606 |
| 250 — 999 | 0.446 |
| 1,000 + | 0.22 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | MOSFET |
| RoHS | E |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-Clip-8 |
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Vds - Drain-Source Breakdown Voltage | 25 V |
| Id - Continuous Drain Current | 100 A |
| Rds On - Drain-Source Resistance | 4.8 mOhms |
| Vgs th - Gate-Source Threshold Voltage | 1.2 V |
| Vgs - Gate-Source Voltage | 10 V |
| Qg - Gate Charge | 6.2 nC |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Pd - Power Dissipation | 3 W |
| Configuration | Single |
| Tradename | NexFET |
| Packaging | Reel |
| Height | 1 mm |
| Length | 3.3 mm |
| Series | CSD16327Q3 |
| Transistor Type | 1 N-Channel |
| Width | 3.3 mm |
| Brand | Texas Instruments |
| Product Type | MOSFET |
| Factory Pack Quantity | 2500 |
| Subcategory | MOSFETs |
| Unit Weight | 0.001549 oz |
For more information, please refer to datasheet
Documents
| CSD16327Q3 Datasheet |
More Information
This 25-V, 3.4-mΩ, SON 3.3-mm × 3.3-mm NexFET™ power MOSFET has been designed to minimize losses in power conversion and optimized for 5-V gate drive applications.
