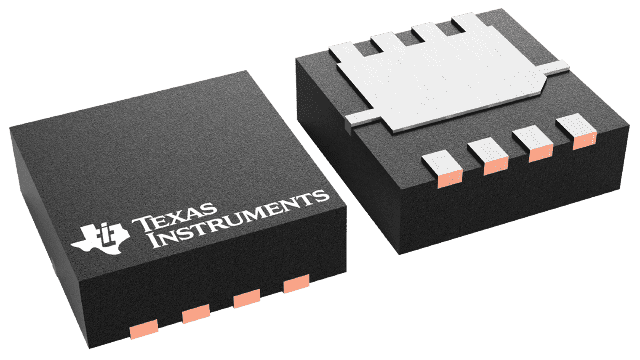

CSD17308Q3T


YeeHing #: Y012-CSD17308Q3T
Inventory: 5800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CSD17308Q3T Texas Instruments - Yeehing Electronics

30-V, N channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 11.8 mOhm

Pricing (USD)

Quantity Unit Price
1 — 99 0.716
100 — 249 0.551
250 — 999 0.406
1,000 + 0.20

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category MOSFET
RoHS N
Technology Si
Mounting Style SMD/SMT
Package / Case VSON-Clip-8
Number of Channels 1 Channel
Transistor Polarity N-Channel
Vds - Drain-Source Breakdown Voltage 30 V
Id - Continuous Drain Current 60 A
Rds On - Drain-Source Resistance 11.8 mOhms
Vgs th - Gate-Source Threshold Voltage 1.3 V
Vgs - Gate-Source Voltage 10 V, 8 V
Qg - Gate Charge 3.9 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 28 W
Configuration Single
Channel Mode Enhancement
Tradename NexFET
Packaging Reel
Height 1 mm
Length 3.3 mm
Series CSD17308Q3
Transistor Type 1 N-Channel
Width 3.3 mm
Brand Texas Instruments
Forward Transconductance - Min 37 S
Fall Time 2.3 ns
Product Type MOSFET
Rise Time 5.7 ns
Factory Pack Quantity 250
Subcategory MOSFETs
Typical Turn-Off Delay Time 9.9 ns
Typical Turn-On Delay Time 4.5 ns
Unit Weight 0.001365 oz

For more information, please refer to datasheet

Documents

CSD17308Q3T Datasheet

More Information

This 30-V, 8.2-mΩ, 3.3 mm × 3.3 mm VSON NexFET™ power MOSFET is designed to minimize losses in power conversion applications and optimized for 5-V gate drive applications.
