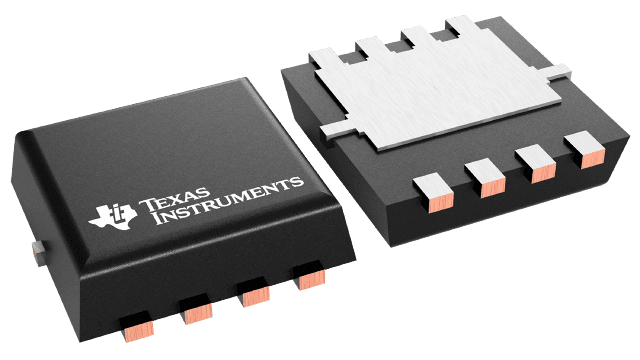

CSD17552Q3A Texas Instruments - Yeehing Electronics
30-V, N channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 6 mOhm
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.689 |
| 100 — 249 | 0.53 |
| 250 — 999 | 0.39 |
| 1,000 + | 0.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | MOSFET |
| RoHS | Y |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | VSONP-8 |
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Vds - Drain-Source Breakdown Voltage | 30 V |
| Id - Continuous Drain Current | 48 A |
| Rds On - Drain-Source Resistance | 8.1 mOhms |
| Vgs th - Gate-Source Threshold Voltage | 1.5 V |
| Vgs - Gate-Source Voltage | 20 V |
| Qg - Gate Charge | 9 nC |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Pd - Power Dissipation | 2.6 W |
| Configuration | Single |
| Tradename | NexFET |
| Packaging | Reel |
| Height | 0.9 mm |
| Length | 3.15 mm |
| Series | CSD17552Q3A |
| Transistor Type | 1 N-Channel |
| Width | 3 mm |
| Brand | Texas Instruments |
| Forward Transconductance - Min | 106 S |
| Fall Time | 3.4 ns |
| Product Type | MOSFET |
| Rise Time | 7.4 ns |
| Factory Pack Quantity | 2500 |
| Subcategory | MOSFETs |
| Typical Turn-Off Delay Time | 11 ns |
| Typical Turn-On Delay Time | 7.2 ns |
| Unit Weight | 0.000981 oz |
For more information, please refer to datasheet
Documents
| CSD17552Q3A Datasheet |
More Information
This 30 V, 5.5 mΩ, 3.3 mm × 3.3 mm SON NexFET power MOSFET is designed to minimize losses in power conversion applications.
