CSD17559Q5T


YeeHing #: Y012-CSD17559Q5T
Inventory: 5200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

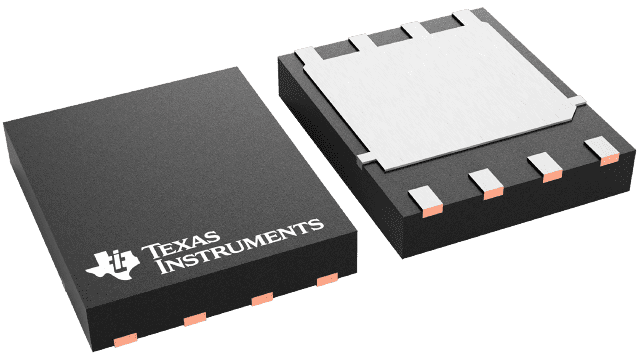

CSD17559Q5T Texas Instruments - Yeehing Electronics

30-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 1.5 mOhm

Pricing (USD)

Quantity Unit Price
1 — 99 2.194
100 — 249 1.922
250 — 999 1.348
1,000 + 0.76

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category MOSFET
RoHS Y
Technology Si
Mounting Style SMD/SMT
Package / Case VSON-Clip-8
Number of Channels 1 Channel
Transistor Polarity N-Channel
Vds - Drain-Source Breakdown Voltage 30 V
Id - Continuous Drain Current 100 A
Rds On - Drain-Source Resistance 1.15 mOhms
Vgs th - Gate-Source Threshold Voltage 1.2 V
Vgs - Gate-Source Voltage 20 V
Qg - Gate Charge 51 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 96 W
Configuration Single
Channel Mode Enhancement
Tradename NexFET
Packaging Reel
Height 1 mm
Length 6 mm
Series CSD17559Q5
Transistor Type 1 N-Channel
Width 5 mm
Brand Texas Instruments
Forward Transconductance - Min 235 S
Fall Time 14 ns
Product Type MOSFET
Rise Time 41 ns
Factory Pack Quantity 250
Subcategory MOSFETs
Typical Turn-Off Delay Time 32 ns
Typical Turn-On Delay Time 20 ns

For more information, please refer to datasheet

Documents

CSD17559Q5T Datasheet

More Information

This 30 V, 0.95 mΩ, 5 × 6 mm SON NexFET™ power MOSFET is designed to minimize losses in synchronous rectification and other power conversion applications.
