CSD17579Q5A Texas Instruments - Yeehing Electronics

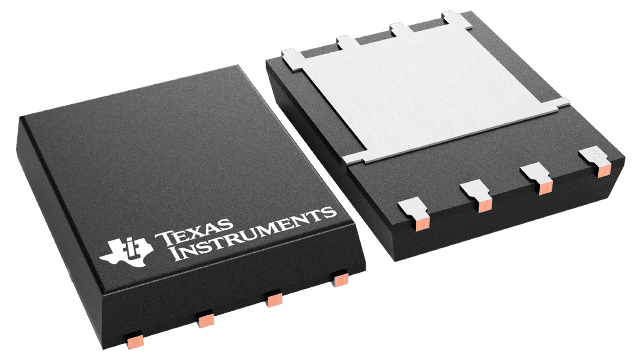

30-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 13.3 mOhm
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.428 |
| 100 — 249 | 0.291 |
| 250 — 999 | 0.224 |
| 1,000 + | 0.09 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | MOSFET |
| RoHS | Y |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | VSONP-8 |
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Vds - Drain-Source Breakdown Voltage | 30 V |
| Id - Continuous Drain Current | 20 A |
| Rds On - Drain-Source Resistance | 11.6 mOhms |
| Vgs - Gate-Source Voltage | 20 V |
| Configuration | Single |
| Tradename | NexFET |
| Packaging | Reel |
| Height | 1 mm |
| Length | 6 mm |
| Series | CSD17579Q5A |
| Transistor Type | 1 N-Channel |
| Width | 4.9 mm |
| Brand | Texas Instruments |
| Product Type | MOSFET |
| Factory Pack Quantity | 2500 |
| Subcategory | MOSFETs |
| Unit Weight | 0.002677 oz |
For more information, please refer to datasheet
Documents
| CSD17579Q5A Datasheet |
More Information
This 30 V, 8.4 mΩ, SON 5 mm × 6mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
