Description

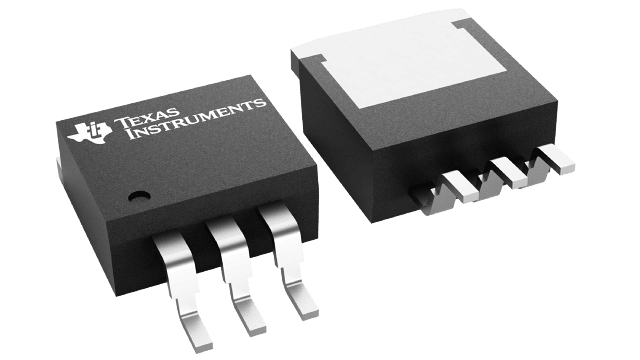

CSD18510KTTT Texas Instruments - Yeehing Electronics
40-V, N channel NexFET™ power MOSFET, single D2PAK, 1.7 mOhm
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.047 |
| 100 — 249 | 1.691 |
| 250 — 999 | 1.215 |
| 1,000 + | 0.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | MOSFET |
| RoHS | E |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | TO-263-3 |
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Vds - Drain-Source Breakdown Voltage | 40 V |
| Id - Continuous Drain Current | 200 A |
| Rds On - Drain-Source Resistance | 2 mOhms |
| Vgs th - Gate-Source Threshold Voltage | 1.4 V |
| Vgs - Gate-Source Voltage | 20 V |
| Qg - Gate Charge | 153 nC |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 175 C |
| Pd - Power Dissipation | 250 W |
| Configuration | Single |
| Channel Mode | Enhancement |
| Tradename | NexFET |
| Packaging | Reel |
| Series | CSD18510KTT |
| Transistor Type | 1 N-Channel |
| Brand | Texas Instruments |
| Forward Transconductance - Min | 330 S |
| Fall Time | 8 ns |
| Moisture Sensitive | Yes |
| Product Type | MOSFET |
| Rise Time | 8 ns |
| Factory Pack Quantity | 50 |
| Subcategory | MOSFETs |
| Typical Turn-Off Delay Time | 29 ns |
| Typical Turn-On Delay Time | 10 ns |
| Unit Weight | 0.077603 oz |
For more information, please refer to datasheet
Documents
| CSD18510KTTT Datasheet |
More Information
This 40-V, 1.4-mΩ, D2PAK (TO-263) NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
