CSD18543Q3AT Texas Instruments - Yeehing Electronics

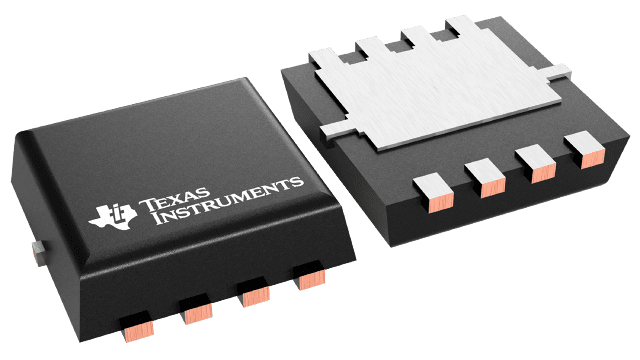

60-V, N channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 9.9 mOhm
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.739 |
| 100 — 249 | 0.568 |
| 250 — 999 | 0.418 |
| 1,000 + | 0.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | MOSFET |
| RoHS | Y |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | VSONP-8 |
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Vds - Drain-Source Breakdown Voltage | 60 V |
| Id - Continuous Drain Current | 12 A |
| Rds On - Drain-Source Resistance | 12 mOhms |
| Vgs th - Gate-Source Threshold Voltage | 1.5 V |
| Vgs - Gate-Source Voltage | 20 V |
| Qg - Gate Charge | 11.1 nC |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Pd - Power Dissipation | 66 W |
| Configuration | Single |
| Channel Mode | Enhancement |
| Tradename | NexFET |
| Packaging | Reel |
| Height | 0.9 mm |
| Length | 3.15 mm |
| Series | CSD18543Q3A |
| Transistor Type | 1 N-Channel |
| Width | 3 mm |
| Brand | Texas Instruments |
| Forward Transconductance - Min | 40 S |
| Fall Time | 4 ns |
| Product Type | MOSFET |
| Rise Time | 18 ns |
| Factory Pack Quantity | 250 |
| Subcategory | MOSFETs |
| Typical Turn-Off Delay Time | 8 ns |
| Typical Turn-On Delay Time | 9 ns |
| Unit Weight | 0.000977 oz |
For more information, please refer to datasheet
Documents
| CSD18543Q3AT Datasheet |
More Information
This 60-V, 8.1-mΩ, SON 3.3-mm × 3.3-mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
