CSD25211W1015 Texas Instruments - Yeehing Electronics

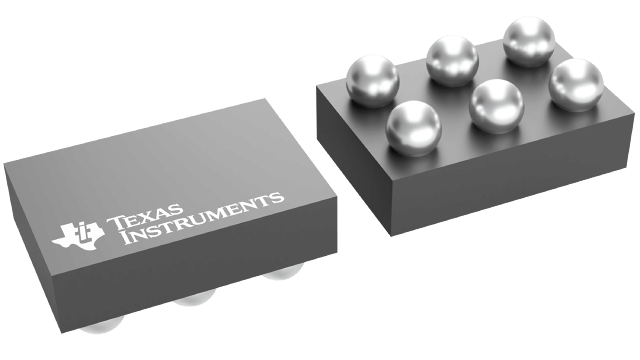

-20-V, P channel NexFET™ power MOSFET, single WLP 1 mm x 1.5 mm, 33 mOhm, gate ESD protection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.336 |
100 — 249 | 0.258 |
250 — 999 | 0.19 |
1,000 + | 0.10 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | MOSFET |
RoHS | Y |
Technology | Si |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-6 |
Number of Channels | 1 Channel |
Transistor Polarity | P-Channel |
Vds - Drain-Source Breakdown Voltage | 20 V |
Id - Continuous Drain Current | 3.2 A |
Rds On - Drain-Source Resistance | 44 mOhms |
Vgs th - Gate-Source Threshold Voltage | 800 mV |
Vgs - Gate-Source Voltage | 6 V |
Qg - Gate Charge | 3.4 nC |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 150 C |
Pd - Power Dissipation | 1 W |
Configuration | Single |
Tradename | NexFET |
Packaging | Reel |
Height | 0.625 mm |
Length | 1.5 mm |
Series | CSD25211W1015 |
Transistor Type | 1 P-Channel |
Width | 1 mm |
Brand | Texas Instruments |
Forward Transconductance - Min | 12 S |
Fall Time | 14.2 ns |
Product Type | MOSFET |
Rise Time | 8.8 ns |
Factory Pack Quantity | 3000 |
Subcategory | MOSFETs |
Typical Turn-Off Delay Time | 36.9 ns |
Typical Turn-On Delay Time | 13.6 ns |
Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
CSD25211W1015 Datasheet |
More Information
The device is designed to deliver the lowest on resistance and gate charge in the smallest outline possible with excellent thermal characteristics in an ultra-low profile.
