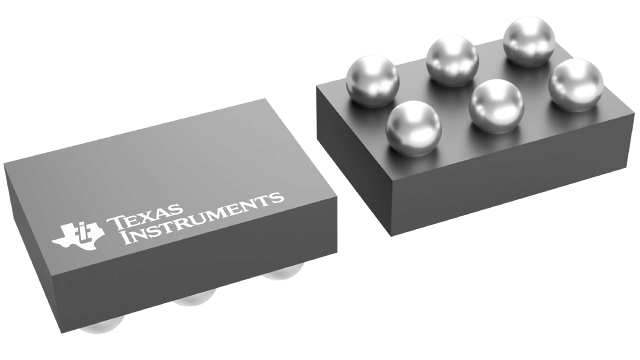

CSD25304W1015T


YeeHing #: Y012-CSD25304W1015T
Inventory: 7800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CSD25304W1015T Texas Instruments - Yeehing Electronics

-20-V, P channel NexFET™ power MOSFET single WLP 1 mm x 1.5 mm, 32.5 mOhm

Pricing (USD)

Quantity Unit Price
1 — 99 0.778
100 — 249 0.599
250 — 999 0.441
1,000 + 0.22

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category MOSFET
RoHS Y
Technology Si
Mounting Style SMD/SMT
Package / Case DSBGA-6
Number of Channels 1 Channel
Transistor Polarity P-Channel
Vds - Drain-Source Breakdown Voltage 20 V
Id - Continuous Drain Current 3 A
Rds On - Drain-Source Resistance 92 mOhms
Vgs th - Gate-Source Threshold Voltage 800 mV
Vgs - Gate-Source Voltage 8 V
Qg - Gate Charge 3.3 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 1.5 W
Configuration Single
Tradename NexFET
Packaging Reel
Height 0.625 mm
Length 1.5 mm
Series CSD25304W1015
Transistor Type 1 P-Channel
Width 1 mm
Brand Texas Instruments
Fall Time 10 ns
Product Type MOSFET
Rise Time 4 ns
Factory Pack Quantity 250
Subcategory MOSFETs
Typical Turn-Off Delay Time 24 ns
Typical Turn-On Delay Time 6 ns
Unit Weight 0.000060 oz

For more information, please refer to datasheet

Documents

CSD25304W1015T Datasheet

More Information

This 27 mΩ, –20 V, P-Channel device is designed to deliver the lowest on-resistance and gate charge in a small 1.0 × 1.5 mm outline with excellent thermal characteristics in an ultra-low profile.
