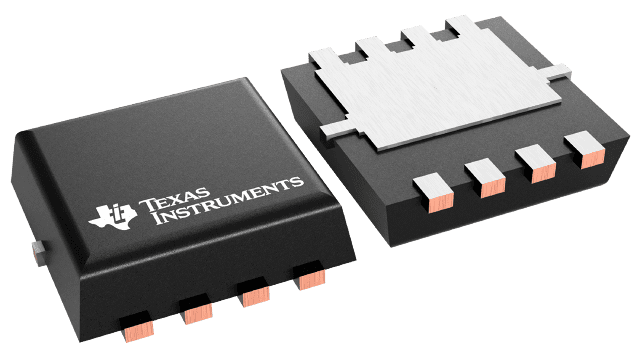

-20-V, P channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 8.9 mOhm
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.635 |
| 100 — 249 | 0.488 |
| 250 — 999 | 0.36 |
| 1,000 + | 0.18 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | MOSFET |
| RoHS | Y |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | VSONP-8 |
| Number of Channels | 1 Channel |
| Transistor Polarity | P-Channel |
| Vds - Drain-Source Breakdown Voltage | 20 V |
| Id - Continuous Drain Current | 76 A |
| Rds On - Drain-Source Resistance | 8.9 mOhms |
| Vgs th - Gate-Source Threshold Voltage | 650 mV |
| Vgs - Gate-Source Voltage | 4.5 V |
| Qg - Gate Charge | 7.5 nC |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Pd - Power Dissipation | 69 W |
| Configuration | Single |
| Channel Mode | Enhancement |
| Tradename | NexFET |
| Packaging | Reel |
| Height | 0.9 mm |
| Length | 3.15 mm |
| Series | CSD25402Q3A |
| Transistor Type | 1 P-Channel Power MOSFET |
| Width | 3 mm |
| Brand | Texas Instruments |
| Fall Time | 12 ns |
| Product Type | MOSFET |
| Rise Time | 7 ns |
| Factory Pack Quantity | 2500 |
| Subcategory | MOSFETs |
| Typical Turn-Off Delay Time | 25 ns |
| Typical Turn-On Delay Time | 10 ns |
For more information, please refer to datasheet
Documents
| CSD25402Q3A Datasheet |
More Information
This -20-V, 7.7-mΩ NexFET power MOSFET is designed to minimize losses in power conversion load management applications with a SON 3.3 mm × 3.3 mm package that offers an excellent thermal performance for the size of the device.
