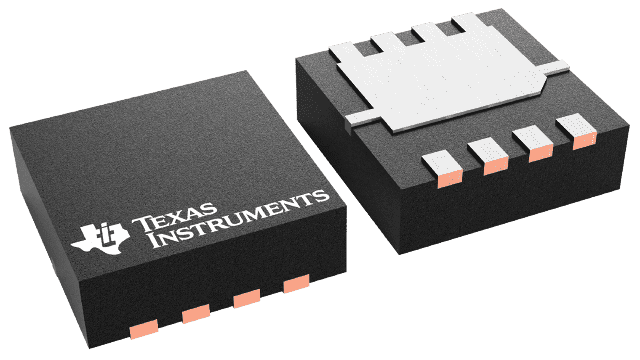

CSD25404Q3 Texas Instruments - Yeehing Electronics
-20-V, P channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 6.5 mOhm
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.82 |
| 100 — 249 | 0.631 |
| 250 — 999 | 0.464 |
| 1,000 + | 0.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | MOSFET |
| RoHS | Y |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-Clip-8 |
| Number of Channels | 1 Channel |
| Transistor Polarity | P-Channel |
| Vds - Drain-Source Breakdown Voltage | 20 V |
| Id - Continuous Drain Current | 104 A |
| Rds On - Drain-Source Resistance | 6.5 mOhms |
| Vgs th - Gate-Source Threshold Voltage | 650 mV |
| Vgs - Gate-Source Voltage | 4.5 V |
| Qg - Gate Charge | 10.8 nC |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Pd - Power Dissipation | 96 W |
| Configuration | Single |
| Channel Mode | Enhancement |
| Tradename | NexFET |
| Packaging | Reel |
| Height | 1 mm |
| Length | 3.3 mm |
| Series | CSD25404Q3 |
| Transistor Type | 1 P-Channel Power MOSFET |
| Width | 3.3 mm |
| Brand | Texas Instruments |
| Fall Time | 13 ns |
| Product Type | MOSFET |
| Rise Time | 8 ns |
| Factory Pack Quantity | 2500 |
| Subcategory | MOSFETs |
| Typical Turn-Off Delay Time | 35 ns |
| Typical Turn-On Delay Time | 13 ns |
| Unit Weight | 0.001549 oz |
For more information, please refer to datasheet
Documents
| CSD25404Q3 Datasheet |
More Information
This -20 V, 5.5 mΩ NexFET power MOSFET is designed to minimize losses in power conversion load management applications with a SON 3.3 mm × 3.3 mm package that offers an excellent thermal performance for the size of the device.
