CSD85301Q2T


YeeHing #: Y012-CSD85301Q2T
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CSD85301Q2T Texas Instruments - Yeehing Electronics

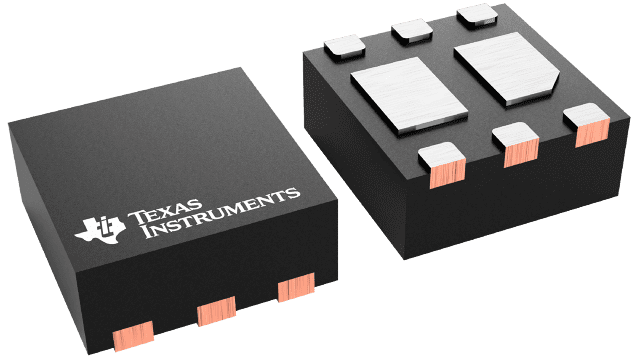

20-V, N channel NexFET™ power MOSFET, dual SON 2 mm x 2 mm, 27 mOhm, gate ESD protection

Pricing (USD)

Quantity Unit Price
1 — 99 0.803
100 — 249 0.618
250 — 999 0.455
1,000 + 0.23

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category MOSFET
RoHS Y
Technology Si
Mounting Style SMD/SMT
Package / Case WSON-FET-6
Number of Channels 2 Channel
Transistor Polarity N-Channel
Vds - Drain-Source Breakdown Voltage 20 V
Id - Continuous Drain Current 5 A
Rds On - Drain-Source Resistance 27 mOhms
Vgs th - Gate-Source Threshold Voltage 600 mV
Vgs - Gate-Source Voltage 10 V
Qg - Gate Charge 5.4 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 2.3 W
Configuration Dual
Tradename NexFET
Packaging Reel
Height 0.75 mm
Length 2 mm
Series CSD85301Q2
Transistor Type 2 N-Channel
Width 2 mm
Brand Texas Instruments
Fall Time 15 ns
Product Type MOSFET
Rise Time 26 ns
Factory Pack Quantity 250
Subcategory MOSFETs
Typical Turn-Off Delay Time 14 ns
Typical Turn-On Delay Time 6 ns
Unit Weight 0.000342 oz

For more information, please refer to datasheet

Documents

CSD85301Q2T Datasheet

More Information

The CSD85301Q2 is a 20 V, 23 mΩ N-Channel device with dual independent MOSFETs in a SON 2 × 2 mm plastic package. The two FETs were designed to be used in a half bridge configuration for synchronous buck and other power supply applications. Additionally, this part can be used for adaptor, USB input protection and battery charging applications. The dual FETs feature low drain to source on-resistance that minimizes losses and offers low component count for space constrained applications.
