CSD86330Q3D


YeeHing #: Y012-CSD86330Q3D
Inventory: 7200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

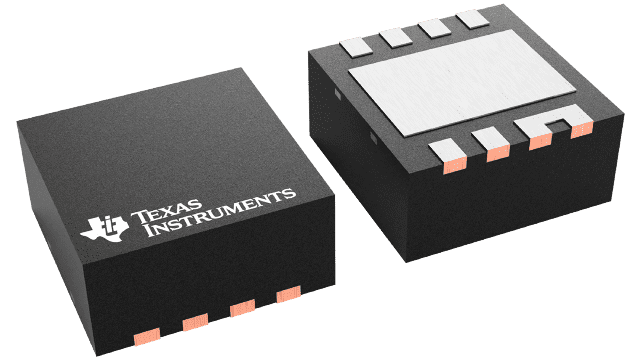

CSD86330Q3D Texas Instruments - Yeehing Electronics

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 3 mm x 3 mm power block, 20 A

Pricing (USD)

Quantity Unit Price
1 — 99 1.523
100 — 249 1.258
250 — 999 0.904
1,000 + 0.48

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category MOSFET
RoHS E
Technology Si
Mounting Style SMD/SMT
Package / Case LSON-CLIP-8
Number of Channels 2 Channel
Transistor Polarity N-Channel
Vds - Drain-Source Breakdown Voltage 25 V
Id - Continuous Drain Current 4.5 A
Vgs th - Gate-Source Threshold Voltage 900 mV
Vgs - Gate-Source Voltage 5 V
Qg - Gate Charge 4.8 nC, 9.2 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 6 W
Configuration Dual
Channel Mode Enhancement
Tradename NexFET
Packaging Reel
Height 1.5 mm
Length 3.3 mm
Series CSD86330Q3D
Transistor Type 2 N-Channel
Width 3.3 mm
Brand Texas Instruments
Forward Transconductance - Min 52 S, 82 S
Development Kit CSD86330EVM-717, TPS40322EVM-679
Fall Time 1.9 ns, 4.2 ns
Product Type MOSFET
Rise Time 7.5 ns, 6.3 ns
Factory Pack Quantity 2500
Subcategory MOSFETs
Typical Turn-Off Delay Time 8.5 ns, 15.8 ns
Typical Turn-On Delay Time 4.9 ns, 5.3 ns
Unit Weight 0.002254 oz

For more information, please refer to datasheet

Documents

CSD86330Q3D Datasheet

More Information

The CSD86330Q3D NexFET™ power block is an optimized design for synchronous buck applications offering high current, high efficiency, and high frequency capability in a small 3.3 mm × 3.3 mm outline. Optimized for 5 V gate drive applications, this product offers a flexible solution capable of offering a high density power supply when paired with any 5 V gate drive from an external controller/driver.
