CSD86356Q5D Texas Instruments - Yeehing Electronics

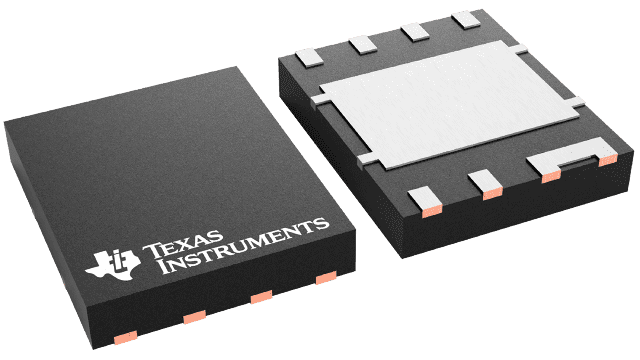

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 40 A
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.727 |
| 100 — 249 | 1.426 |
| 250 — 999 | 1.025 |
| 1,000 + | 0.54 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | MOSFET |
| RoHS | Y |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | SON-8 |
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Vds - Drain-Source Breakdown Voltage | 25 V |
| Id - Continuous Drain Current | 40 A |
| Rds On - Drain-Source Resistance | 4.5 mOhms |
| Vgs th - Gate-Source Threshold Voltage | 950 mV |
| Vgs - Gate-Source Voltage | 10 V |
| Qg - Gate Charge | 7.9 nC |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Pd - Power Dissipation | 12 W |
| Configuration | Single |
| Channel Mode | Enhancement |
| Tradename | NexFET |
| Packaging | Reel |
| Series | CSD86356Q5D |
| Transistor Type | PowerBlock |
| Brand | Texas Instruments |
| Forward Transconductance - Min | 70 S |
| Fall Time | 3 ns |
| Product Type | MOSFET |
| Rise Time | 26 ns |
| Factory Pack Quantity | 2500 |
| Subcategory | MOSFETs |
| Typical Turn-Off Delay Time | 12 ns |
| Typical Turn-On Delay Time | 7 ns |
For more information, please refer to datasheet
Documents
| CSD86356Q5D Datasheet |
More Information
The CSD86356Q5D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 5-mm × 6-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver.
