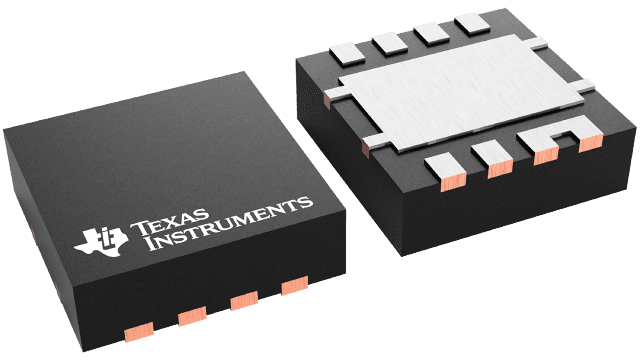

CSD87334Q3D Texas Instruments - Yeehing Electronics

30-V, N channel synchronous buck NexFET™ power MOSFET, SON 3 mm x 3 mm power block, 20 A

Pricing (USD)

Quantity Unit Price
1 — 99 1.121
100 — 249 0.863
250 — 999 0.635
1,000 + 0.32

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category MOSFET
RoHS Y
Technology Si
Mounting Style SMD/SMT
Package / Case VSON-8
Number of Channels 1 Channel
Transistor Polarity N-Channel
Vds - Drain-Source Breakdown Voltage 30 V
Id - Continuous Drain Current 20 A
Rds On - Drain-Source Resistance 8.3 mOhms, 8.3 mOhms
Vgs th - Gate-Source Threshold Voltage 750 mV
Vgs - Gate-Source Voltage 8 V
Qg - Gate Charge 8.3 nC, 8.3 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 6 W
Configuration Single
Channel Mode Enhancement
Tradename NexFET
Packaging Reel
Height 1 mm
Length 3.3 mm
Series CSD87334Q3D
Transistor Type 1 N-channel
Width 3.3 mm
Brand Texas Instruments
Fall Time 17 ns, 17 ns
Product Type MOSFET
Rise Time 7 ns, 7 ns
Factory Pack Quantity 2500
Subcategory MOSFETs
Typical Turn-Off Delay Time 11 ns, 11 ns
Typical Turn-On Delay Time 4 ns, 4 ns
Unit Weight 0.002677 oz

For more information, please refer to datasheet

Documents

CSD87334Q3D Datasheet

More Information

The CSD87334Q3D NexFET™ power block is an optimized design for synchronous buck and boost applications offering high-current, high-efficiency, and high-frequency capability in a small 3.3 mm × 3.3 mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution in high-duty cycle applications when paired with an external controller or driver.
